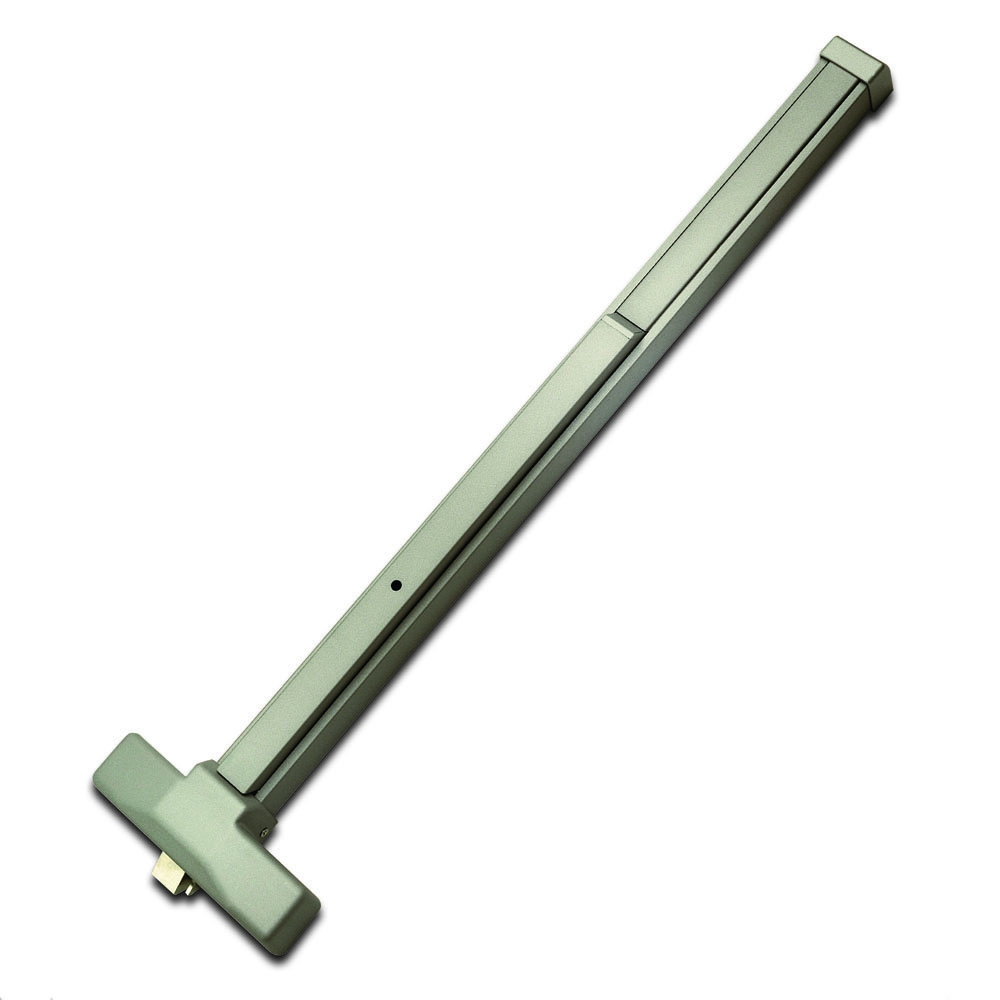

PDQ 4200 Series Rim Exit Devices

The PDQ 4200 Series of commercial exit devices is ideal for emergency egress in public buildings, schools, and hospitals. This Series offers a reliable and economical solution for compliance with life safety and fire code requirements.

Pricing varies based on options selected below.
US$151.87

Specifications:

Specifications:

CHASSIS: Corrosion resistant plated steel

RAIL: Heavy gauge steel or stainless steel

TOUCH PAD: Heavy gauge steel or stainless steel

LATCH: 3/4” throw

BACKSET: 2-3/4” backset, Supplied standard for 161 prep with door gap of 1/8”

STRIKE: Supplied standard for 161 prep with 5/8” stop and standard door gap of 1/8”

PROJECTION: 2-5/8” projection

HAND: Device is non-handed

DOGGING: Hex key dogging standard, No dogging on fire listed devices

MINIMUM STILE WIDTH: 4-1/4” when paired with 4 EW, 4 EN, 4P and 4GW Series Trim. 4-1/2” when paried with for 4S and 4K Series Sectional Trim.

DOOR THICKNESS: 1-3/4”

FINISH:626 (US26D) – Satin Chrome

FASTENERS: Device supplied with machine screws and wood screws. Sex Nuts supplied with all Fire Listed devices.

CERTIFICATIONS, LISTINGS:

  • UL/ULC 305 listed for “Panic”, UL10C Listed for “Fire Exit Hardware” for doors labeled for up to 1-1/2 hour for 3’0” x 7’0” maximum single, 6’0” x 7’0” maximum pairs
  • Meets requirements of the Buy American Act.
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

WARRANTY: Five (5) year limited warranty
