Progressive Spindle Assortment Kits

SKU # PRSPAST

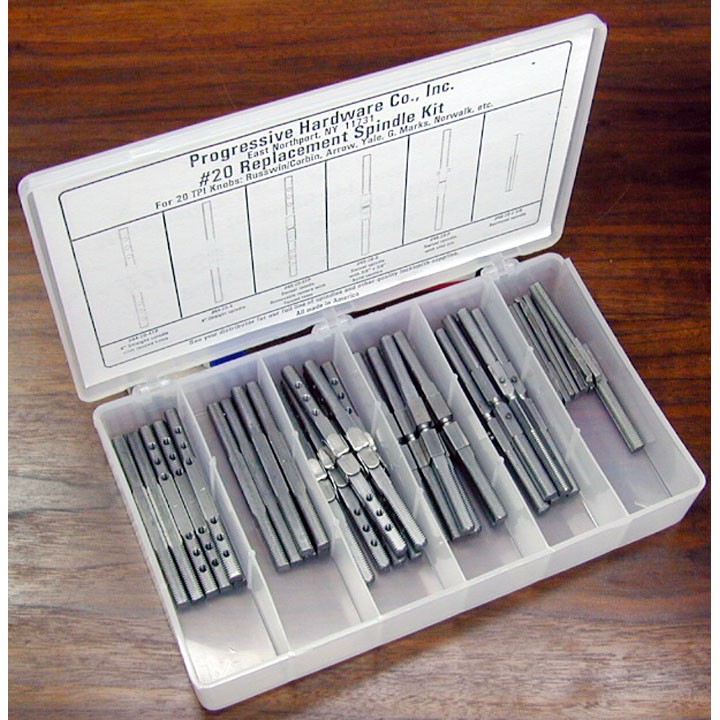

The Progressive Spindle Assortments Kits contain 6 each of the most popular spindles, for a total per kit of 36 pieces.

Pricing varies based on options selected below.
US$164.50

Description:

Description:

#20 Spindle Kit  for all 20 TPI knobs contains:

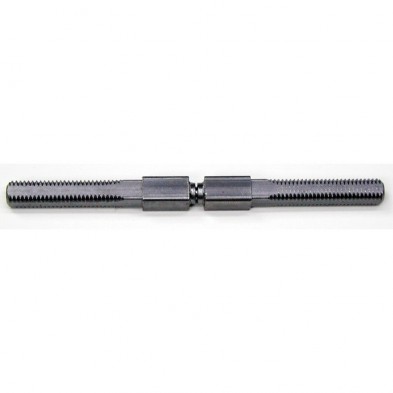

  • 6 ea - #45-20-S Swivel Steel Knob Spindle, 9/32" Square, 20 TPI, 4-3/4" Long, Threaded 3/8-20, with two 3/8" solid centers.
  • 6 ea - #45-20-P Swivel Steel Knob Spindle, 9/32" Square, 20 TPI, 4-3/4" Long, Threaded 3/8-20, with stop pin. Replaces Russwin #21.
  • 6 ea - #44-20-4 Straight Steel Knob Spindle, 9/32" Square, 20 TPI, 4" Long.
  • 6 ea - #44-20-4TP Straight Steel Knob Spindle, 9/32" Square, 20 TPI, 4" Long, tapped holes both ends.
  • 6 ea - #46-20-2-5/8 Sectional Steel Knob Spindle, 9/32" Square, 20 TPI, 2-5/8" Long, Threaded 3/8-20.
  • 6 ea - #45-20-RTP Swivel Steel Knob Spindle, 9/32" Square, 20 TPI, 4-3/4" Long, Threaded 3/8-20, with two removable centers, tapped holes both ends.

#1618 Spindle Kit for Sargent and Lockwood 18 TPI knobs contains:

  • 6 ea - #44-16-5 Straight Steel Knob Spindle, 9/32" Square, 16 TPI, 5" Long.
  • 6 ea - #45-16-S Swivel Steel Knob Spindle, 9/32" Square, 4-3/4" Long, threaded 3/8-16, with two 3/8" solid centers.
  • 6 ea - #46-16
  • 6 ea - #44-18-4 1/2 Straight Steel Knob Spindle, 9/32" Square, 18 TPI, 4-1/2" Long.
  • 6 ea - #45-18-S Swivel Steel Knob Spindle, 9/32" Square, 18 TPI, 4-3/4" Long, Threaded 3/8-18, with two 3/8" solid centers.
  • 6 ea - #46-18-2 5/8 Sectional Steel Knob Spindle, 9/32" Square, 18 TPI, 2-5/8" Long, Threaded 3/8-16.
