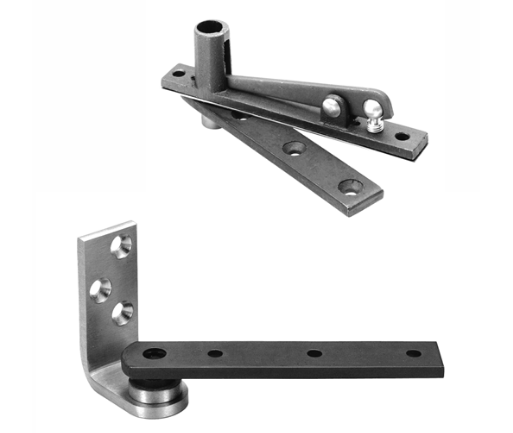

Rixson 127-3/4-613 Center Hung Side Jamb Attached Pivot

SKU # RX/127-3-4-613

The Rixson 127-3/4-613 Center Hung Side Jamb Attached Pivot is a Center Hung Side Jamb Attached Pivot                .              .                .

Features include:

  • Center Hung Side Jamb Attached Pivot
  • Oil Rubbed Bronze
  • Interior Doors
  • Weight to 200 lbs.
  • Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)
  • Non-handed
  • Light-Duty/Light Weight Jamb Attached Pivot Set
  • Standard top pivot 320 included
  • Bottom pivot mortised into side jamb
  • Weight of door borne by floor
  • Pivot point centered in thickness of door
  • Door must have radius on pivot edge
  • Not allowed for use on labeled doors and frames
  • Pivot point remains constant at 1-1/4 from the edge of the door
  • Furnished with wood and machine screws
  • Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
US$282.24
