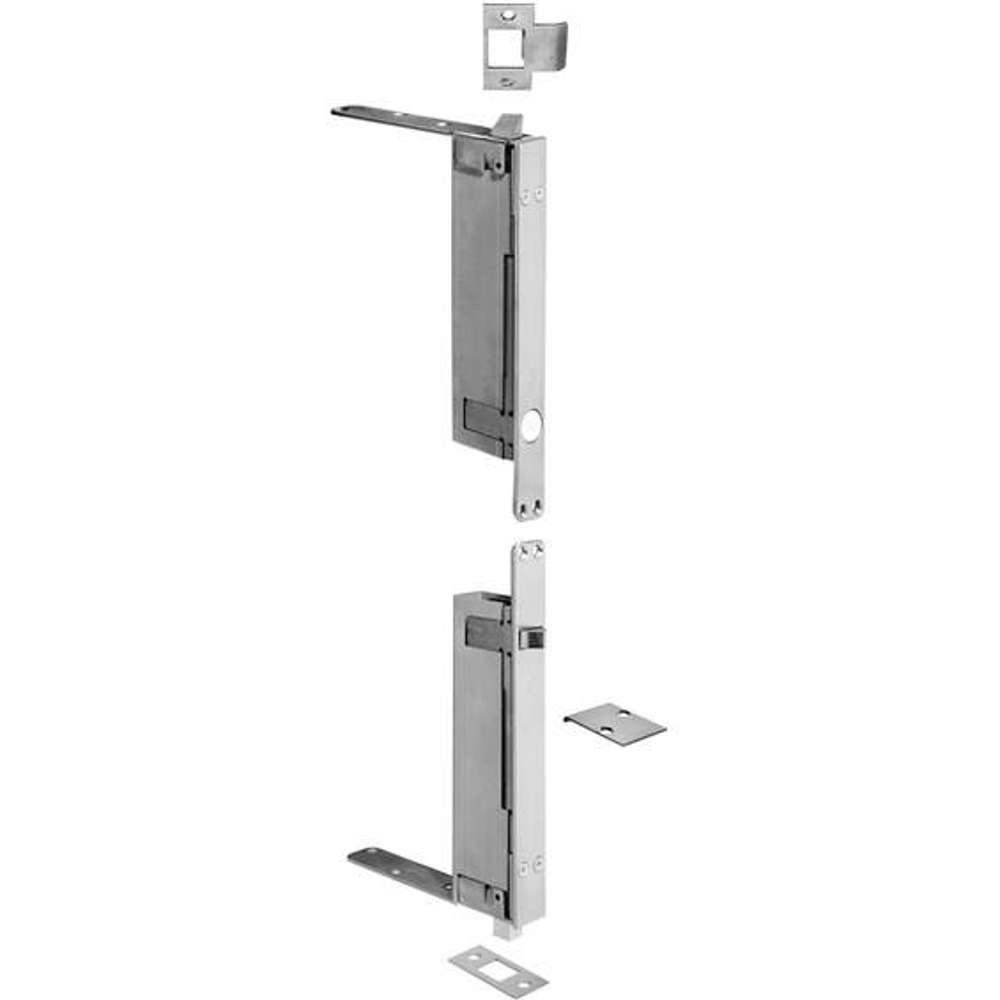

Rockwood 2945 Combination Flush Bolt Set

SKU # RO/2945-US26D

The 2945 Combination Flush Bolt is part of the Rockwood Hardware

  • Bottom Bolt:
    • Low closing force
    • Fully automatic–opening active door retracts bottom bolt
    • Override feature prevents damage to door or bolt if bolt head is blocked from entering strike
    • Bolt head rod is adjustable up to 3/8"
    • Thermal lock automatically locks the inactive door under high heat conditions due to fire
  • Wood door flush bolts can not be extended in size. Extension rods are not available.
  • For wood doors
  • Can be used with the No. 570 Dust Proof Strike
  • Top Bolt: Automatically engages when the inactive door closes. When the active door is opened, the inactive door stays latched at the top until the top bolt is released by pressing the plunger button on the bolt face.

Specifications

  • Base Material: Brass, Bronze, Stainless Steel
  • Fastener: 10 ea. #8 x 3/4" FH combo screws, 4 ea. #8 - 32 x 1/2" FH MS, 3 ea. #10 x 1" FH WS, 2 ea. #6 - 8 plastic anchors
  • Weight: 2.9lbs.
  • Length: 8 1/2"
  • Width: 1"

Delivery: The Rockwood 2945 Combination Flush Bolt Set is in stock, please allow 1-2 business weeks' lead time.

US$141.66

Description:

Description:

Rockwood 2945 Combination Flush Bolt Set

2945 Combination Flush Bolt Set by Rockwood Hardware

For Wood or Plastic Covered Composite Type Fire Doors Rated up to and including 1-1/2 hours, up to 4' W x 8' H.

Fastener: Top: 4 each #8 x 3/4 FH combo screws, 2 each #8-32 x 1/2 FH MS, 3 each #10 x 1 FH WS. NOTE: No plastic anchor required for top only. Bottom: 10 each #8 x 3/4 FH combo screws, 4 each #8-32 x 1/2 FH MS, 6 each #10 x 1 FH WS, 2 each #6-8 plastic anchors.
Material: Brass or Stainless Steel.
Features: Top Bolt: Automatically engages when the inactive door closes. When the active door is opened, the inactive door stays latched at the top until the top bolt is released by pressing the plunger button on the bolt face. Bottom Bolt: Non-handed. Low closing force. Fully automatic-opening active door retracts bottom bolt. Override feature prevents damage to door or bolt if bolt head is blocked from entering strike. Bolt head rod is adjustable up to 1/2". Thermal lock automatically locks the inactive door under high heat conditions due to fire. UL Listed.

Finish:The Rockwood 2945 Combination Flush Bolt comes in Brass (605), Satin Brass (606), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Chrome (625), Satin Chrome (626), and Satin Stainless Steel (630) finish.

Dimensions: 1" x 8-1/2".
