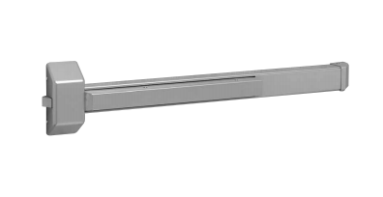

The Sargent 12-3828F-EN Rim Exit Device, 36", Fire Rated is a 36", Fire Rated, Rim Exit Device.
- Rim Exit Device
- 36 inches
- Fire Rated
- Rugged exit device in a rim design.
- Chassis mounted unit construction assures easy installation and maintenance
- Tapered push rail and angled covers
- Steel endcaps and covers
- All exit devices meet ANSI/BHMA Standard 156.3, Grade 1
- UL Listed
- UL Listed to Canadian safety standards
- For Doors 1-3/4" (44) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike
- Mounting Furnished standard with wood and machine screws
- Cover: Steel
- Chassis: Nonferrous alloy
- Rail: Assembly Roll formed steel
- End Cap: Steel
- Non Handed
- Latchbolt: Stainless steel 3/4" (19mm) throw
- EN - Sprayed Aluminum Enamel
