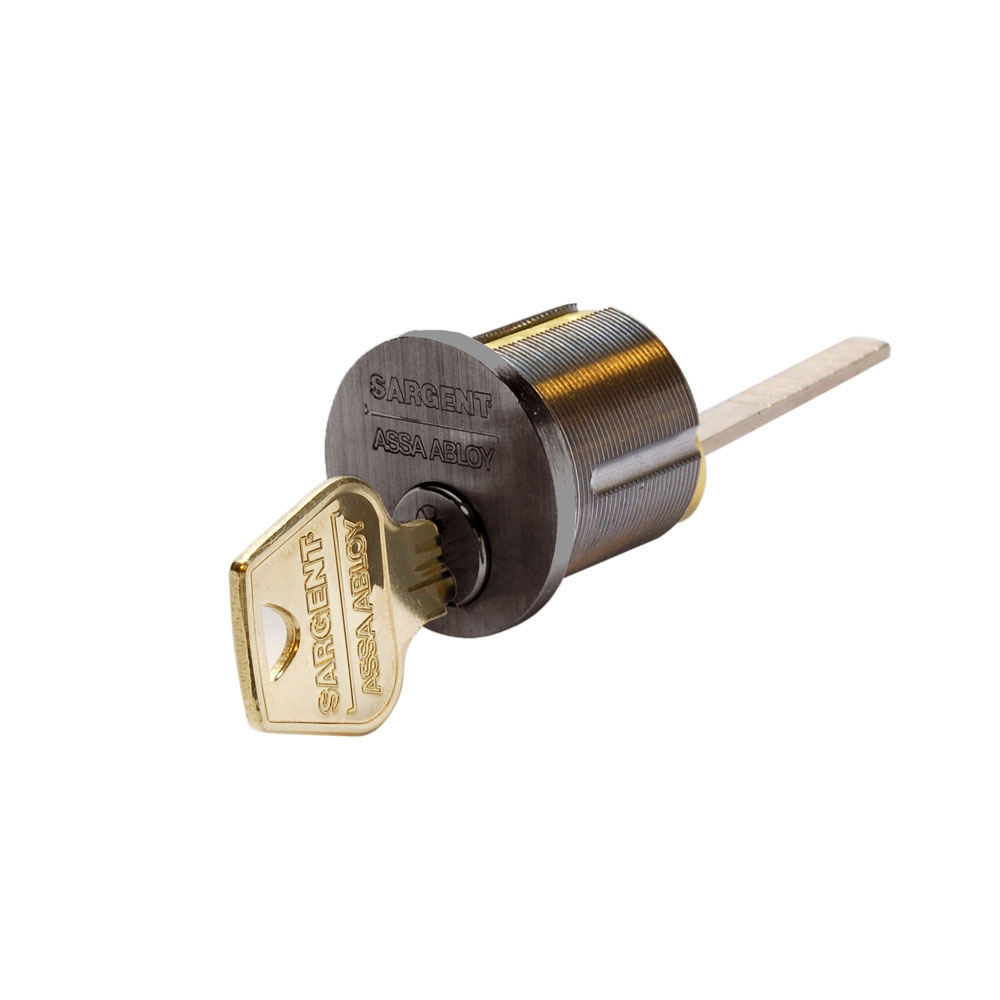

The Sargent 34-LA-10B Rim Cylinder, La Keyway, Oil Ribbed Bronzeis an Oil Ribbed Bronze, La Keyway,Rim Cylinder.
Features include:
- Sargent34Rim Cylinder6-Pin
- Oil Ribbed Bronze
- LA Keyway
- Door Thickness When Used W/ Outside Trim: 2-3/8" to 3-1/4" (60mm to 82mm)
- 27/32" (21mm) screw pattern for through-bolted SARGENT exit devices
- Cylinder: Solid brass
- Cap: Brass, bronze or stainless steel
- Furnished standard with No. 97 rosette and compression spring, “break-off” screws and back plate
- 6 pin standard
- Horizontal tail piece only
- Cylinders BHMA A156.5 Grade 1 listed except hotel functions.
This item is available on our
GSA contract # 47QSWA19D001W
