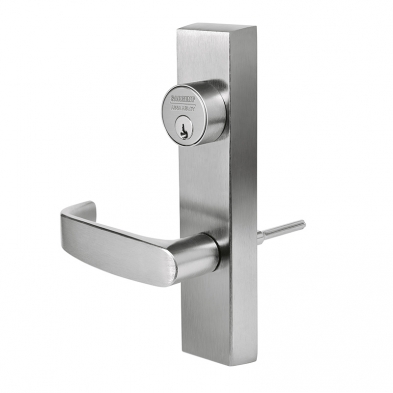

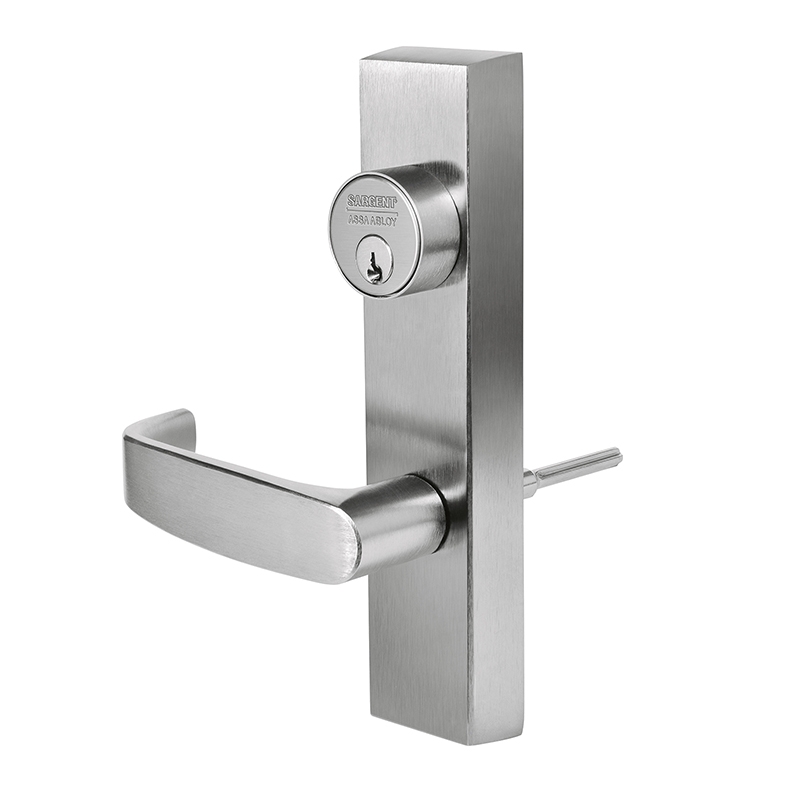

Sargent 704-ETL-RHRB-26D Nightlatch Function Trim

SKU # SA/704-ETL-RHRB-26D

The Sargent 704-ETL-RHRB-26D Nightlatch Function Trim is a Nightlatch Function Trim in a Satin Chrome Finish.

Features include:

  • Nightlatch Function -  Key Retracts Latch
  • Conventional Cylinder #34
  • RHR
  • L Lever
  • Nightlatch Function Trim
  • Satin Chrome
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$607.58
Comments or instructions

Description:

Description:

Sargent 704-ETL-RHRB-26D Nightlatch Function Trim

Sargent 704 ETL Grade 1 Exit Device Trim, Night Latch, Key Retracts Latch, For Rim and Mortise

(8300, 8500, 8800, 8900, 9800, 9900 Series) Devices, 1-3/4" Mortise Cylinder for Mortise Devices, L Lever

The 700 Series trims are through-bolted to the chassis for greater security and durability.

  • Function: Nightlatch - ANSI No.03
  • Key retracts latch bolt
  • Cylinder Type: Rim for Rim Devices, 1-3/4" Mortise for Mortise Devices - LA Keyway
  • For Use With: 8300, 8500, 8800, 8900, 9800, 9900 Series Rim/Mortise Devices - 8304, 12-8304, 8504, 8804, 12-8804, 8888, 12-8888, 8904, 12-8904, 9804, 12-9804, 9904, 12-9904
  • Lever Style: L Lever
  • Trim Style: ET
  • Lever Height: 2-3/8 Inch
  • Trim Plate Width: 1-13/16 Inch
  • Trim Plate Height: 8-1/16 Inch
  • Product Projection: 3-9/16 Inch
  • Lever Length-Inches: 4-1/2 Inch
  • Trim Plate Thickness: 13/16 Inch
  • Finishes: 26D - Satin Chrome, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, 3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 26 - Bright Chrome
