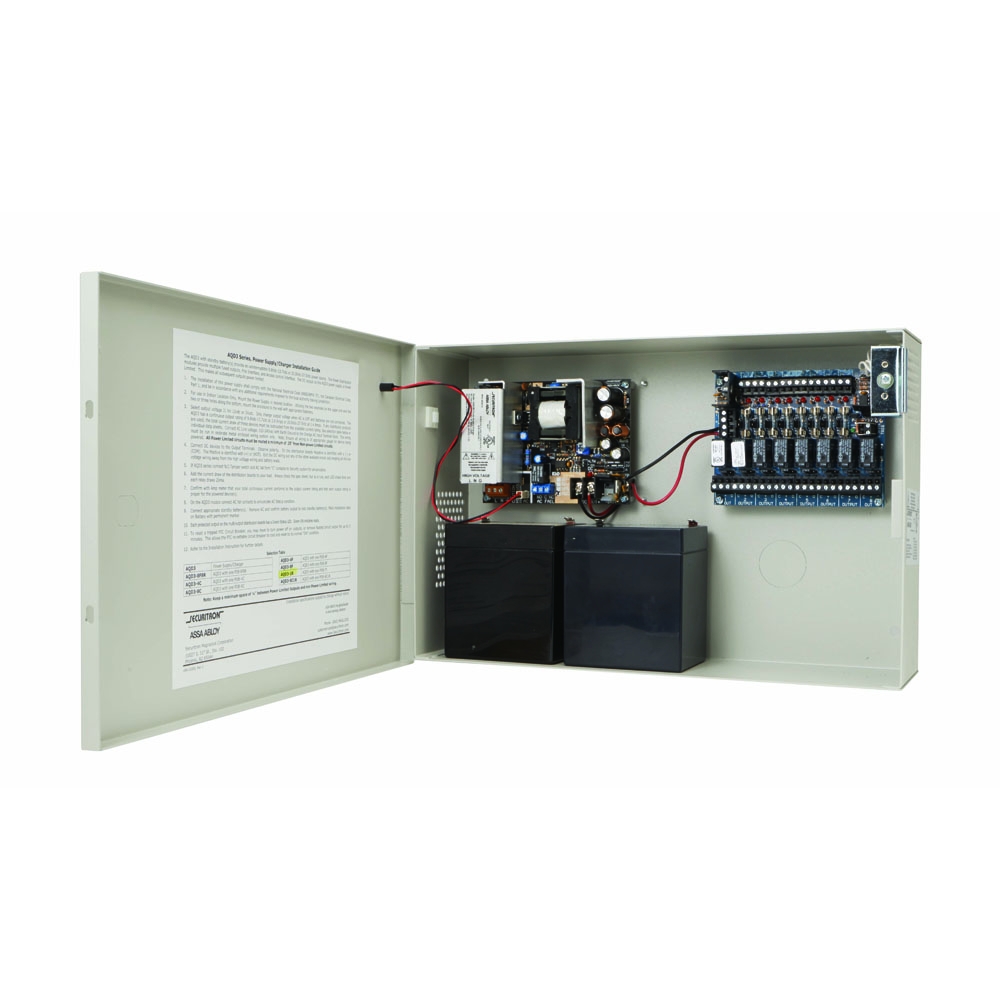

The Securitron AQD3-8F8R Power Supply is a Power Supply with battery charger/backup and supervision is a dual voltage switching power supply with a fire transfer relay that uses any AC power source from 90-240VAC to provide up to 3 Amps @ 12VDC or 1.5 Amps @ 24VDC total output.The Securitron® AccuPower® AQD3 Series of switching power supplies are dual voltage, supervised units with battery charger. These units are field selectable, with a fast battery charge reserve.
Features include:
- Clean, steady, accurate power output for best performance of access control equipment8F8R
- Field-selectable dual voltage
- Universal transformer compatible with international power, operates down to 60 VAC
- Self-resetting circuit breakers for common conditions including: - Overcurrent; - Thermal runaway; - Reverse battery hookup
- Eight (8) channel power distribution with access control and fire transfer relays
- Channels individually configurable to enable/disable with fire trigger
- Heavy duty relay per output with status LED, or group outputs by jumper
- Can provide dry contacts, Normally Open/Normally Closed selected via jumper
- Individual input for each output
- Power-limited, fuse-protected outputs, each with a green status LED indicator
- Main power LED indicates input power status
- Trigger LED indicates Fire Relay status
- Pluggable terminal blocks by channel and function
- Fuse protected against surge for AC input and DC output
- SPDT Form C outputs for remote monitoring of: - AC failure; - Low battery
- UL and ULC Listed; Made in USA
