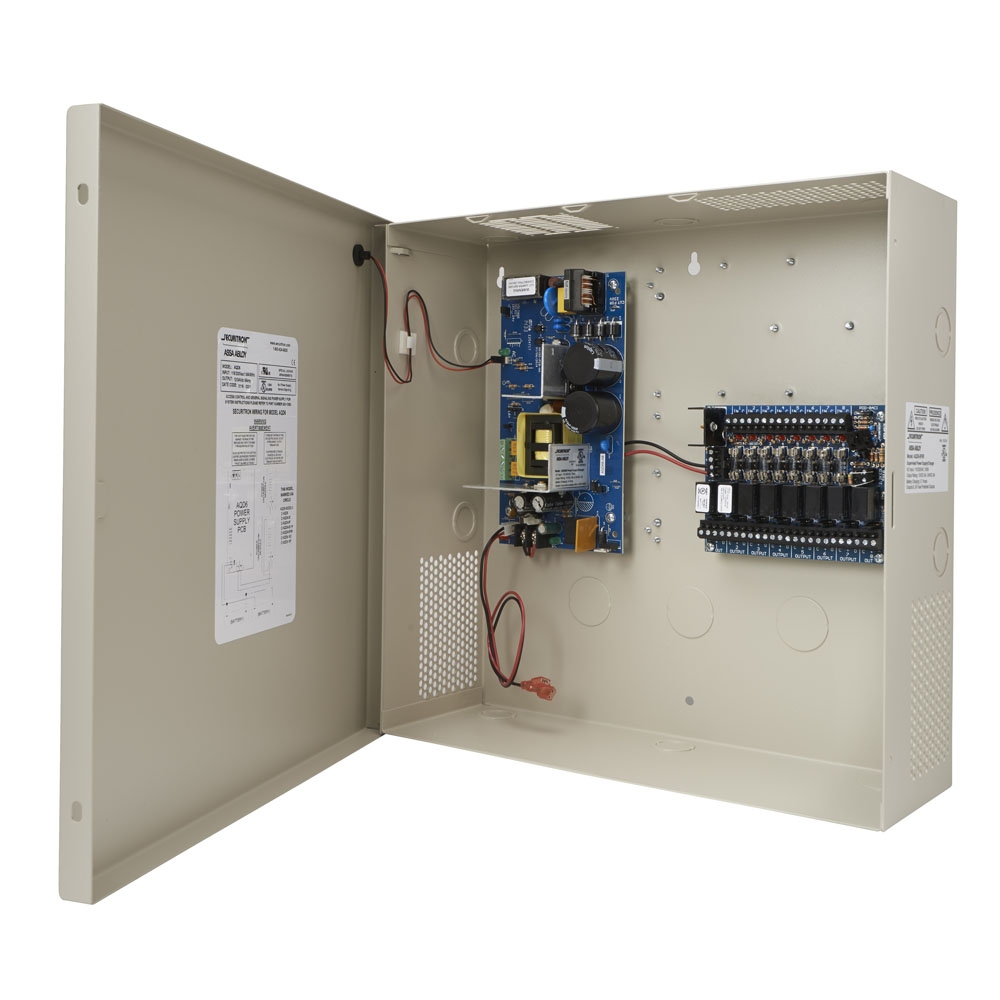

The Securitron AQD8-8F8R Power Supply is a part of the Securitron AQD6 Series of switching power supplies that are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 6 Amps at 12VDC or 24VDC continuous, with 8 independently controlled power limited outputs.
Features include:
- 6 Amp, Dual Voltage Power Supply with enclosure, 8 outputs, 2 Amp glass fuses, 8 relays, Fire Trigger
- Clean, steady, accurate power output for best performance of access control equipment
- Class 2 power limited output
- Up to 91% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff
- Fuse protected against surge for AC input and DC output
- Made in USA
