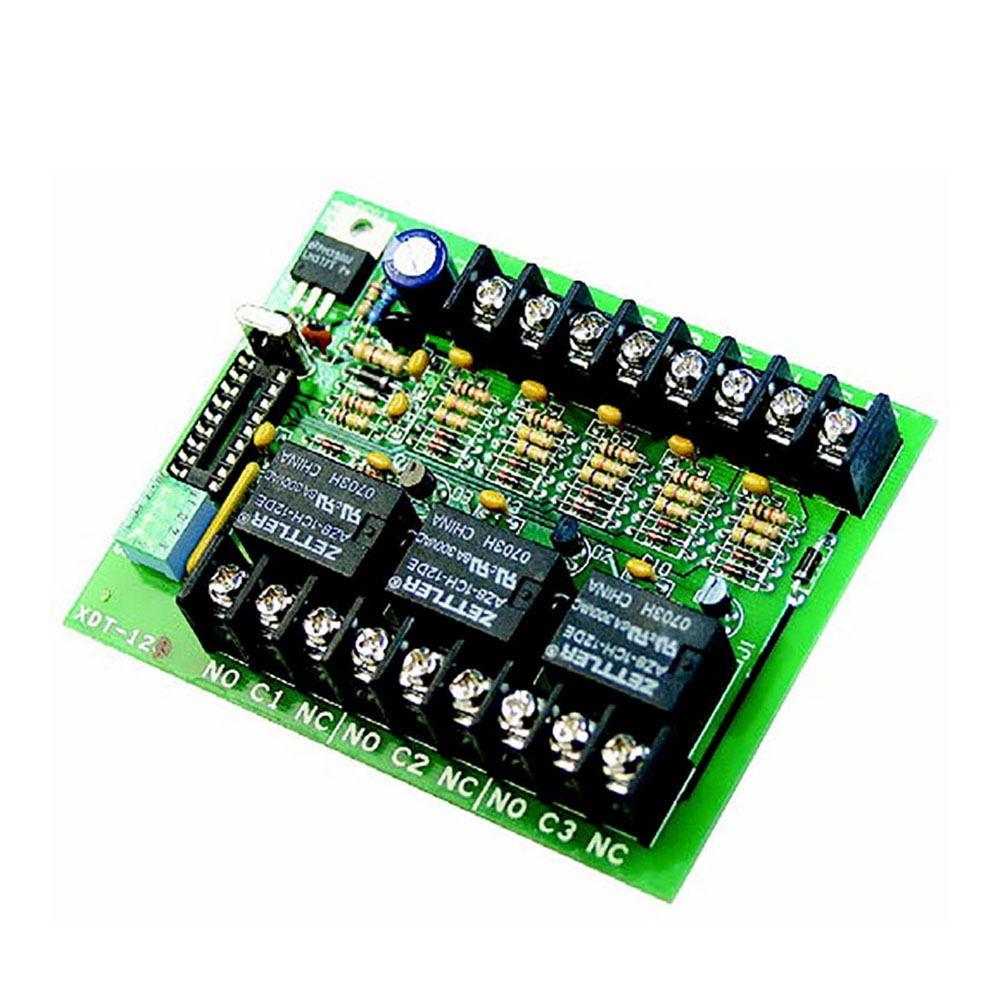

Securitron XDT-12 Exit Delay Timer
The Securitron XDT-12 Exit Delay Timer is a sophisticated device designed to manage delayed egress systems in secure environments. It operates on 12VDC and is particularly useful in applications where controlled exits are essential, such as in healthcare facilities to monitor patient movement or in retail environments to prevent theft.
Key Features:
- Code Compliance: The XDT-12 meets all major building code requirements, including the BOCA 30-second relock function, ensuring that it adheres to strict safety standards.
- Configurable Delay Settings: The device allows for precise control over nuisance delay and release times, which can be easily adjusted using DIP switches to suit specific security needs.
- Multiple Relays: Equipped with three 5A SPDT relays, the XDT-12 offers extensive interface capabilities with other security and monitoring systems.
- External Control Compatibility: The timer can be integrated with external devices such as time clocks, allowing it to switch modes based on different operational needs throughout the day.
- Built-in Sounder and Door Label: The BA-XDT-12 variant includes a piezo sounder and comes in a surface mount enclosure, providing both audible alerts and clear visual indicators at the exit point.
This timer is widely used in environments that require controlled exits, ensuring that security protocols are maintained while providing necessary flexibility for authorized personnel.
