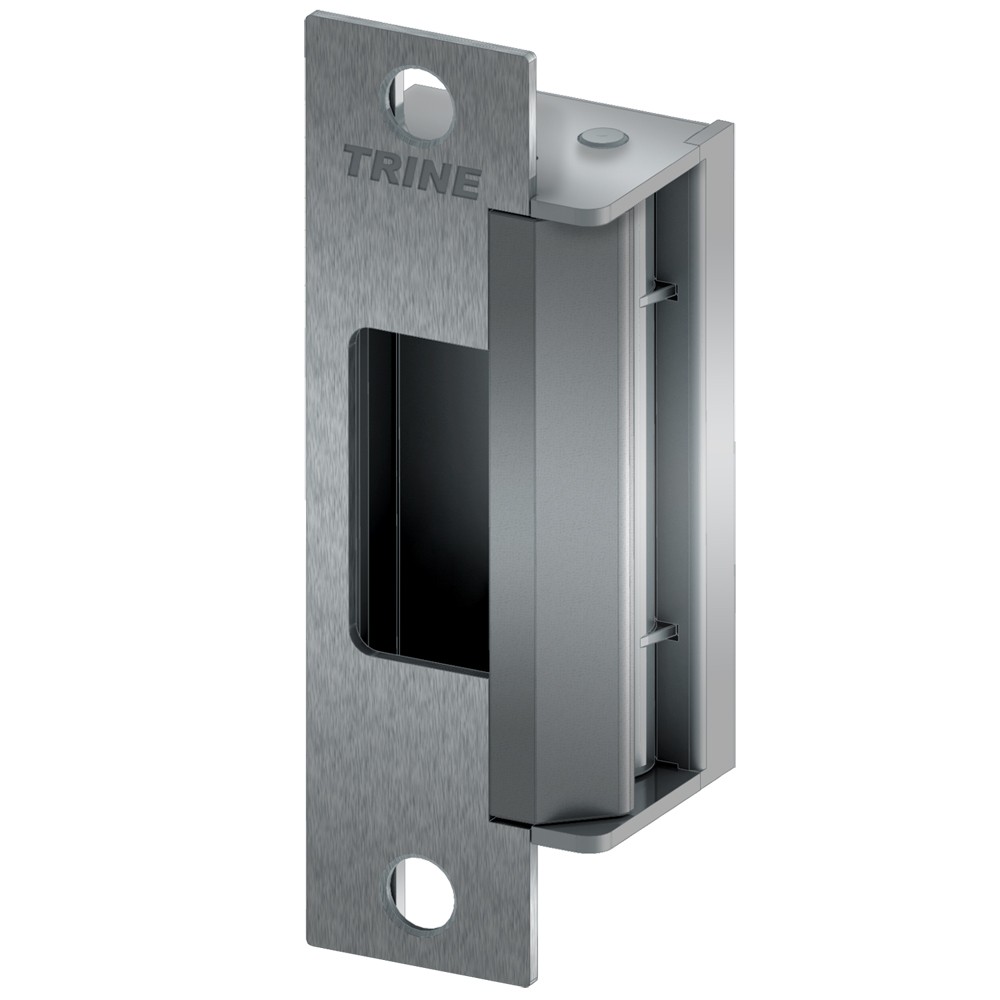

Trine 4100 Electric Strike Shallow Backset 12/24VAC-DC

SKU # TN/4100-32D

Use with cylindrical locksets, mortise locks without dead bolts and mortise exit devices. For new or replacement installations in wood or metal jambs. 1-3/8 shallow backset allows the 4100 to be used in 2 fire rated frames with 1/2 sheetrock ingress. Included the 4 most used faceplates to make specifying and installing easy.

  • BHMA - Grade 1
  • Strong: Exceeds 3,250 lbs. of Holding Force
  • Durable: Exceeds 1,000,000 Life Cycles
  • Patent Pending # US20110241361
  • Cutout Specification A115.1 (with Slight Jamb Modification)
  • Fail-secure - Standard action, Unlocks with power
  • Patented

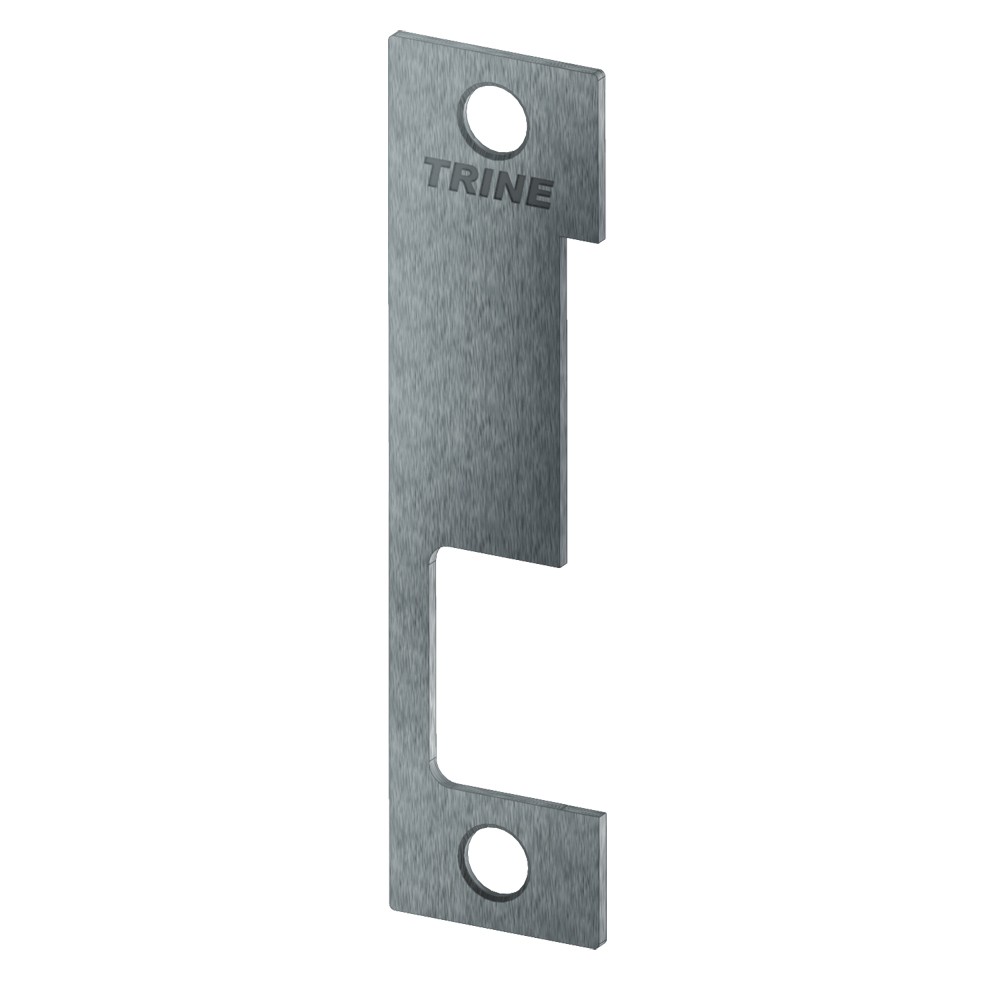

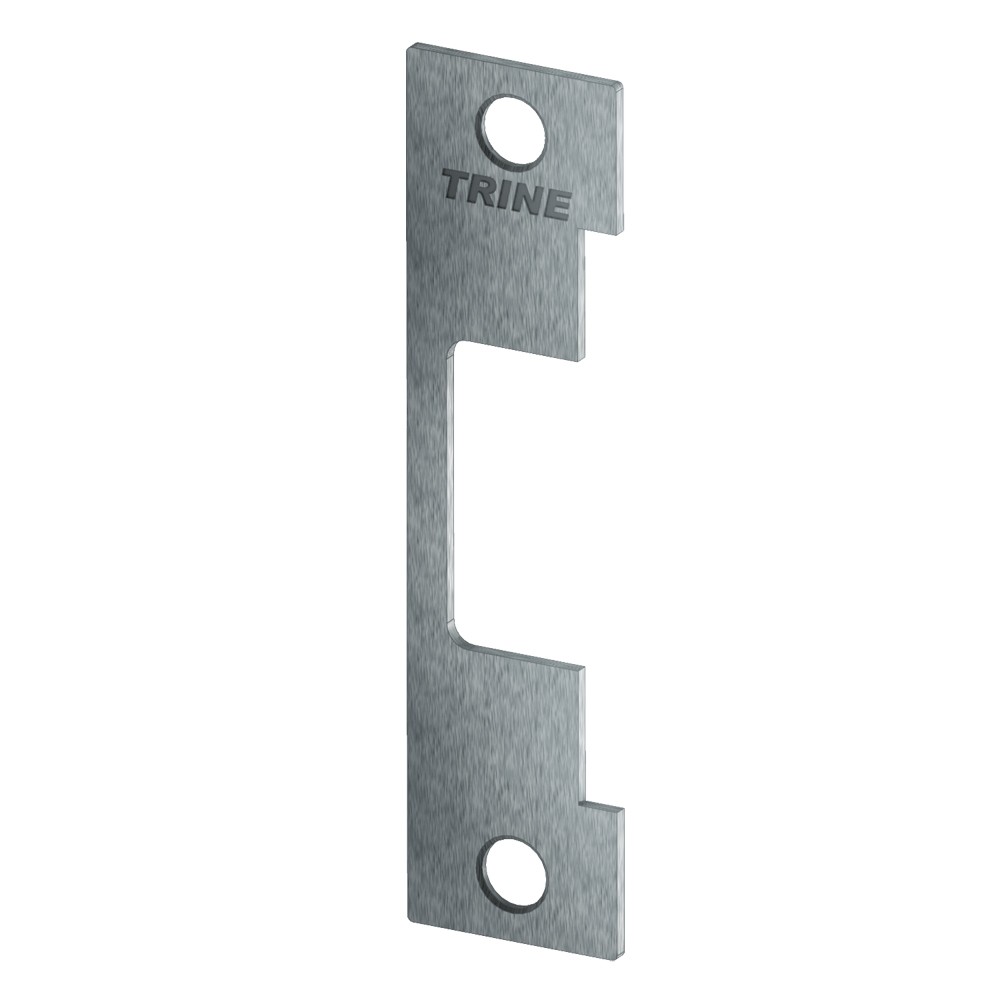

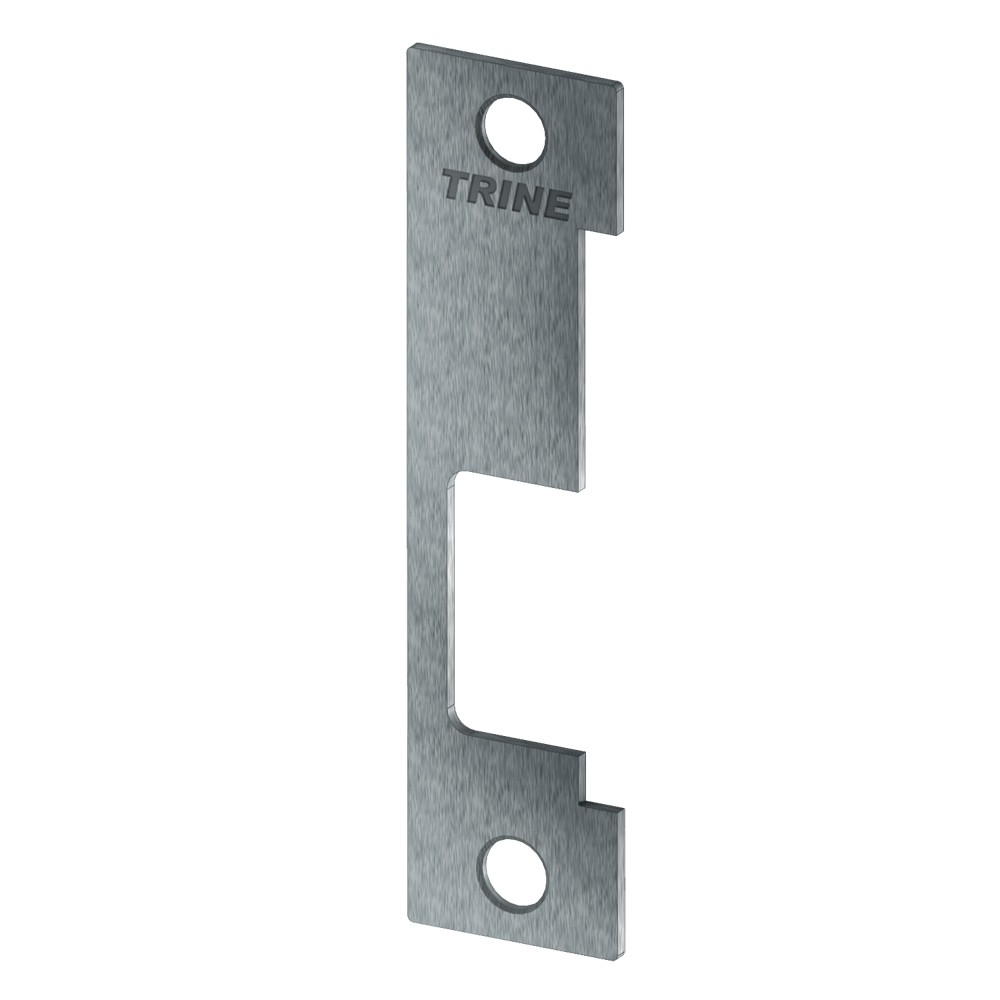

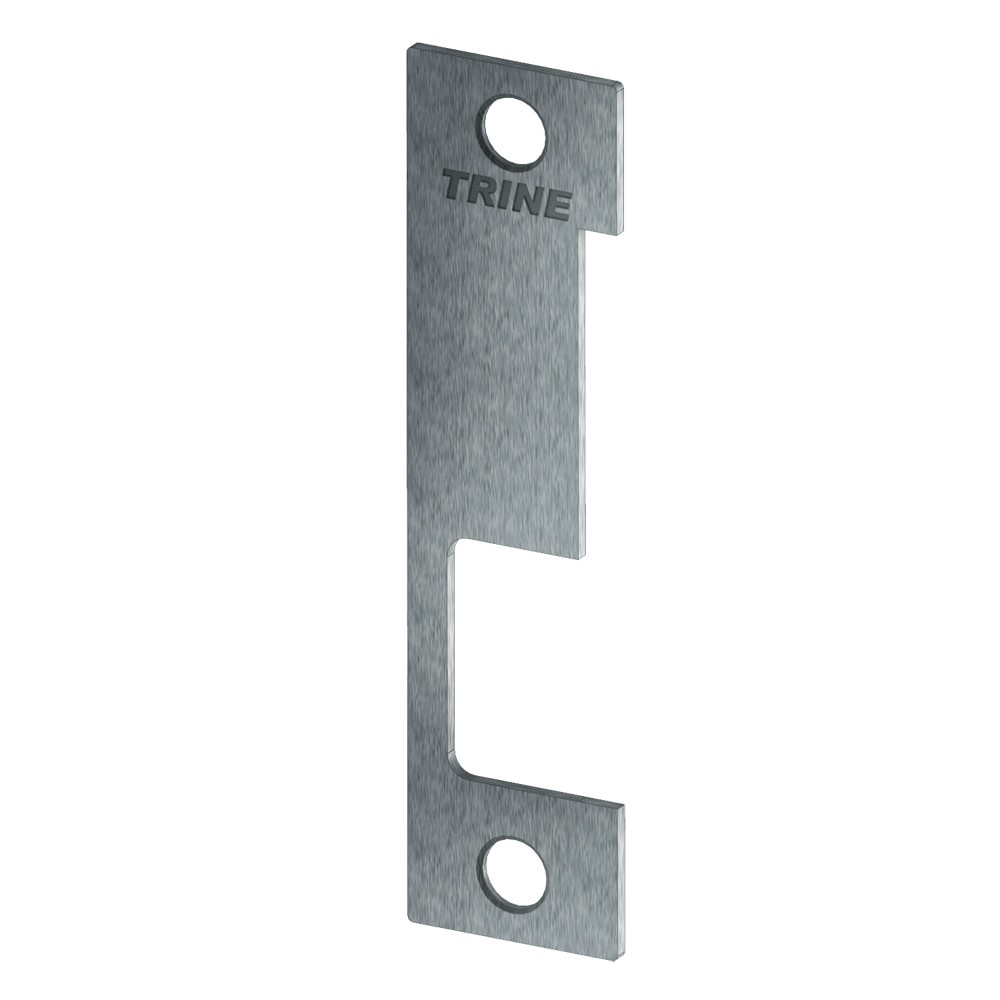

Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.

US$410.40

Specifications:

Specifications:

Specifications:

  • Class A, 3 Hour fire rated single door / frame configuration
  • WH recognized for UL10C, Fire Tests of Door Assemblies
  • UBC 7-2, Uniform building Code
  • CAN4 S104, Standard Method for Fire Tests of Door Assemblies
  • NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
  • NOTE: WH fire listing is void when using fail safe action.
  • UL LISTED - 1034 Burglary Resistant
  • ANSI/BHMA A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
