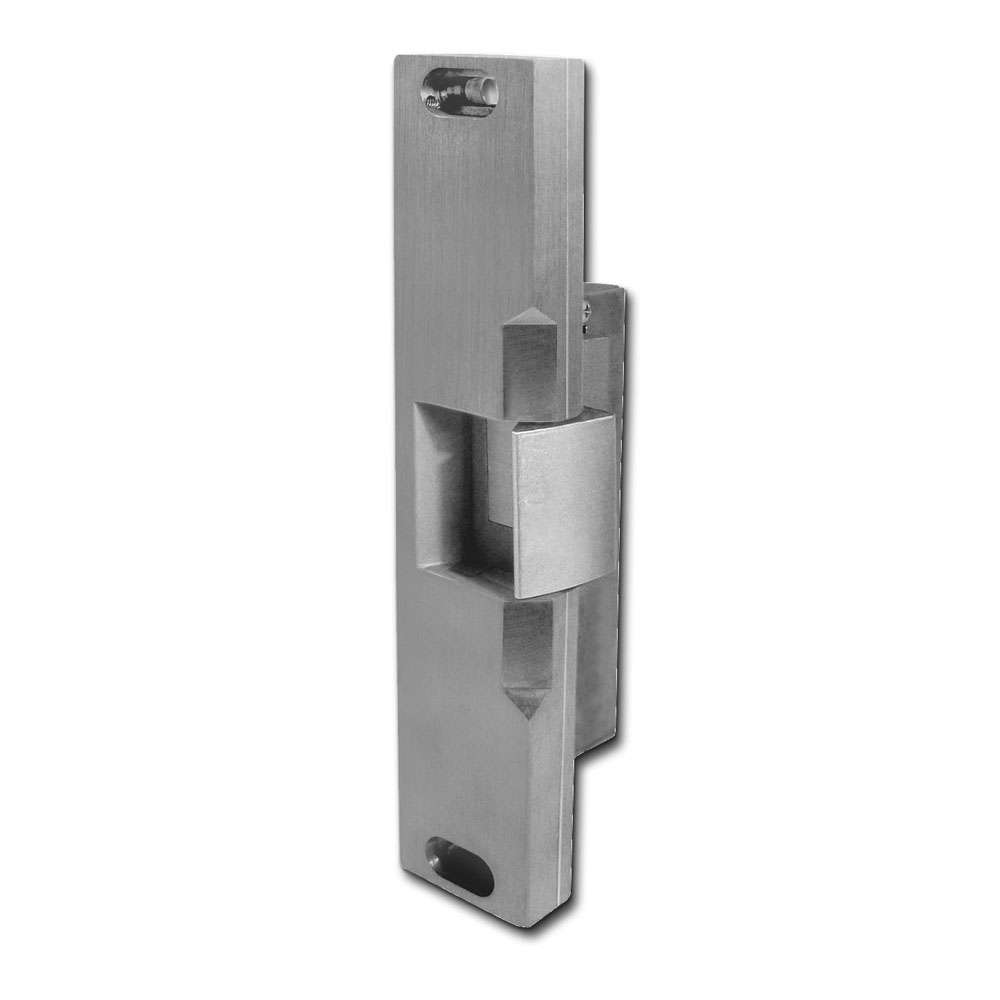

The Folger Electric 310-4-24D-630-LCBMA Electric Strike is an Electric Strike, 24VDC in Satin Stainlees Steel. The 310-4 is a 3 hour fire-rated, industrial electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. The 310-4 has a unique 3/4" face plate with an integraded 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.
Specifications include:
- Electric Strike
- 310-4
- For up to 3/4" Pullman style latchbolts on single doors.
- PK keeper standard
- .25 Amps at 24 VDC
- Satin Stainlees Steel
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Integrated ramps for better deadlatch handling
- Set screws for horizontal lockdown
- In-frame horizontal adjustability
- Wider faceplate (1-3/4”) for greater versatility
- Non-handed
- Fail Secure (standard)
- Plug-in connector
