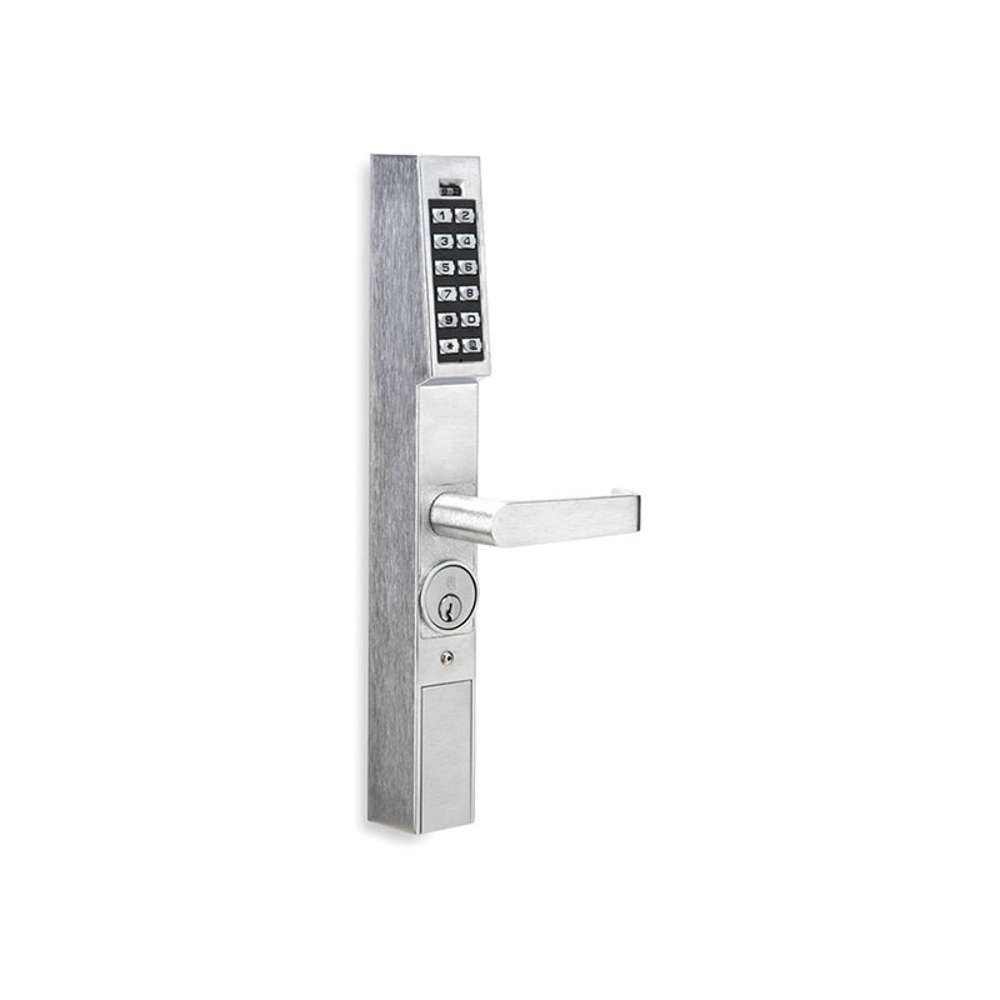

Alarm Lock DL1200ET-26D Pushbutton Exit Trim

SKU # AA/DL1200ET-26D

Alarm Lock DL1200ET-26D Pushbutton Exit Trim

The Alarm Lock DL1200ET-26D Pushbutton Exit Trim is part of the Trilogy Narrow Stile lever model series designed to work with Adams Rite latch series. It is a pushbutton lock, and the thumbturn model supports swing and hook bolt products. The cylinder is not included, and it has a US26D finish.

  • Narrow Stile Access Locks
  • DL1200 PIN aluminium door retrofit outside trim
  • Aluminium door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks.
  • Field-proven, familiar Trilogy® programming & electronics
  • PIN code Model supports 100 users (see model info.)
  • All-metal, vandal-resistant 12-button keypad supports 3-6 digit PIN codes, and multilevel user hierarchy (master, manager, supervisor, basic users)
  • Keypad programmable (see model info.). Quickly and easily add or delete users and enter “passage mode”, service codes, group lock-out & group-enable
  • Wide weatherproof operating range from -31 to 151ºF (-35 to 66C)

Delivery: The Alarm Lock DL1200ET-26D Pushbutton Exit Trim is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$398.63

Description:

Description:

Alarm Lock DL1200ET-26D Pushbutton Exit Trim

Alarm Lock's Trilogy narrow stile exit device trim locks for aluminum door retrofits. Adds vandal-resistant keyless access to panic exit doors. Protects storefronts and managed properties 24/7. Up to 2000 users supported with 3-5 digit access codes and multilevel user hierarchy. Designed with all-metal, vandal-resistant 12-button keypads. Easily installs on most aluminum glass doors. Works with Marks USA M8800, Von Duprin (Von 33 LH (RHR) only), Arrow, DCI and Corbin panic devices.

TECHNICAL DATA

  • Wireless standalone locks: Long-life, battery- operated; Includes audible and visual low battery alert. (Uses standard off-the-shelf batteries.)
  • Non-handed; fully field-reversible
  • Key override; interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
  • Mortise Cylinder, 1-1/4” supplied. (Supports 1-1/8, 1-1/4 and 1-3/8”)
  • Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
  • Backsets 31/32”,1-1/8” and 1-1/2” ; Stile thickness 1-3/4”
  • Finishes US26D Satin Chrome, US10B Duronodic
