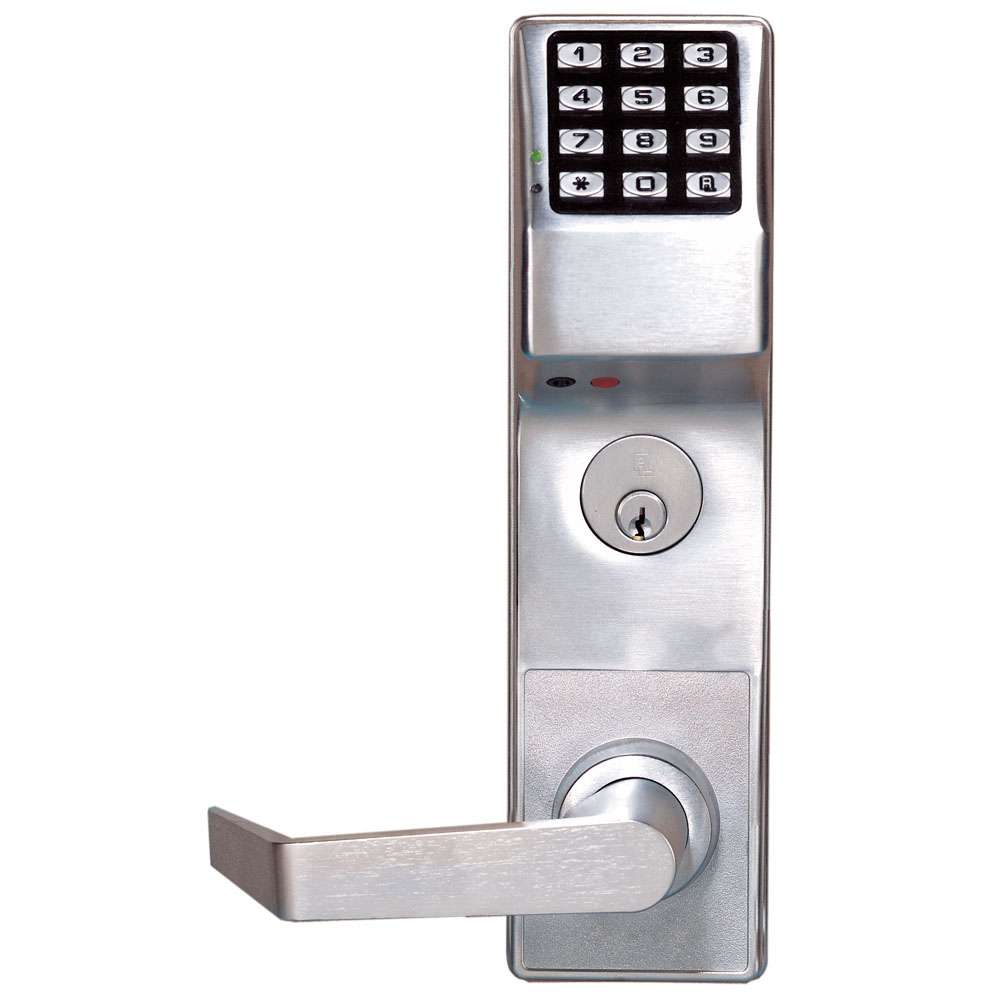

Alarm Lock DL3500DBL-US26D Mortise Lock with Deadbolt

SKU # AA/DL3500DBL-26D

Alarm Lock DL3500DBL-US26D Mortise Lock with Deadbolt

The Alarm Lock DL3500DBL-US26D Mortise Lock with Deadbolt is a left handed straight lever digital mortise keyless pin pad that secures entryways with a capacity of 300 user codes with multilevel security access options, from manager to supervisor to basic user categories. All of this is programmable on the keypad itself or with a Windows PC.

The event audit trail has extensive recording capabilities, able to log up to 40,000 events. This information, includes time, date, and activity, can be printed out or transferred to a PC. It also features a real time clock that enables up to 500 scheduled events, along with holiday schedules. These options can be programmed and transferred to lock via a PC interface or data transfer module.

The deadbolt function has a stainless steel deadbolt with 1" projection, and a latchbolt with 3/4" projection.

  • Satin chrome finish
  • Weatherproof and operates at temperatures from -20 to 151 degrees Fahrenheit
  • 1-1/4" x 4-7/8" strike
  • 1-3/8" mortise cylinder
  • Cylinder has a deadbolt function with cloverleaf cam
  • ADA compliant levers
  • Standard 2-3/4" backset
  • Grade 1 durability
  • 5AA battery powered
  • UL listed hardware
  • Audiovisual entry indicator at the front of the device
  • Fits onto doors of 1-3/8" to 1-7/8" wide

Delivery: The Alarm Lock DL3500DBL-US26D Mortise Lock with Deadbolt is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$828.50

Description:

Description:

Alarm Lock DL3500DBL-US26D Mortise Lock with Deadbolt

Trilogy Mortise: High security digital locks.
Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.

  • 300 User codes: Master, manager, supervisor & basic users
  • Fingertip or Windows PC-programmable
  • Real time clock enables up to 500 scheduled events and holiday schedules
  • 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
  • Long-life battery pak for 80,000 cycles, typical and low-battery alert
  • Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
  • 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
  • 40,000 event audit trail log
  • 500 scheduled events, e.g., lock or unlock
  • PC programming/reporting
  • Quick passage mode (without being in program mode)
  • Program data transferred to lock via AL-PCI2 or AL-DTMIII
  • 5AA battery-pak operated; 75,000 cycles, typical
  • 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C

Specifications:
