Alarm Lock Trilogy Electronic Digital Proximity Lock

SKU # AA/PL3000-26D

Alarm Lock Trilogy Electronic Digital Proximity Lock

Weather resistant electronic battery operated proximity only lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple “one-time” user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats.

  • Heavy Duty, Weatherproof, Grade 1 lock
  • Rugged clutch mechanism insures long life and durability
  • Compatible with any HID 125kHZ prox cards 26-48 bit
  • Easily integrates into all decors with 3 decorative finishes
  • Enrolled users gain access by pre-enrolled cards or fobs
  • Program at lock (while its in programming mode using any one of the 9 pre-programmed cards furnished with lock), or using Windows PC based software

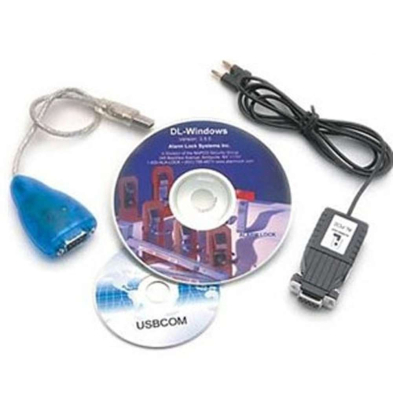

    • PC interface cables required for computer programming in order transfer your user data to the lock and download and review your audit trail
    • Software provides an easier and more intuitive way to program lock.  You also get access to 40% more of the functionality.
  • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access. Logs events to within 1 second of accuracy
  • Supports 2000 users; including, master, manager, supervisor and basic users
  • First-Manager-in controls three (3) different features:  Passage mode, group of users and relay options
  • Weatherproof performance
  • New!  Remote Release Kit for ‘Buzz-In’
  • Program allowable entry time from 3-15 seconds – how long user has once they present prox card before door relocks
  • Audit Trail with Time/Date Stamp for a printable record of all electronic activity
  • 4 Time-Out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
  • Easy to install. Retrofits most cylindrical locksets and digital locks
  • Battery Operation:  5 AA’s; appx. 60,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup (9V’s sold separately)
  • Backset:  2 3/4″ included (2 3/8″ available at checkout)
  • Key override – lock furnished with conventional Schlage 6-pin cylinder using a Schlage SC1 keyway
  • Underwriters Laboratory (UL) listing
  • Warranty:  2 year manufacturer

Delivery: The Alarm Lock Trilogy Electronic Digital Proximity Lock is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$1,237.50

Description:

Description:

Alarm Lock Trilogy Electronic Digital Proximity Lock

  • Door Thickness: Fits 1 5/8” to 1 7/8”. Other thickness, please consult factory

  • Backset: 2 3/4” (2 3/8” also available)

  • Strike: 1 1/8”x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included

  • Latchbolt: UL Listed, fire rated 3 hours, 1/2” throwreversible

  • Handing: Non-handed

  • Power: 5 AA alkaline batteries (included)

  • Programming: 9 prox programming cards included

  • Door prep: Standard ANSI A115 Series prep, modified by adding additional through-bolt holes

  • Compliances: BHMA certified Grade 1 heavy duty cylindrical lockset. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA compliant levers

  • Cylinder: 6 pin solid brass, SC1 keyway, furnished with all key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)

  • Interchangeable Core Models: Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 and 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
