I.E.I. Mullion Style Backlit Keypad 26 Bit

SKU # IE/SSWILMAL

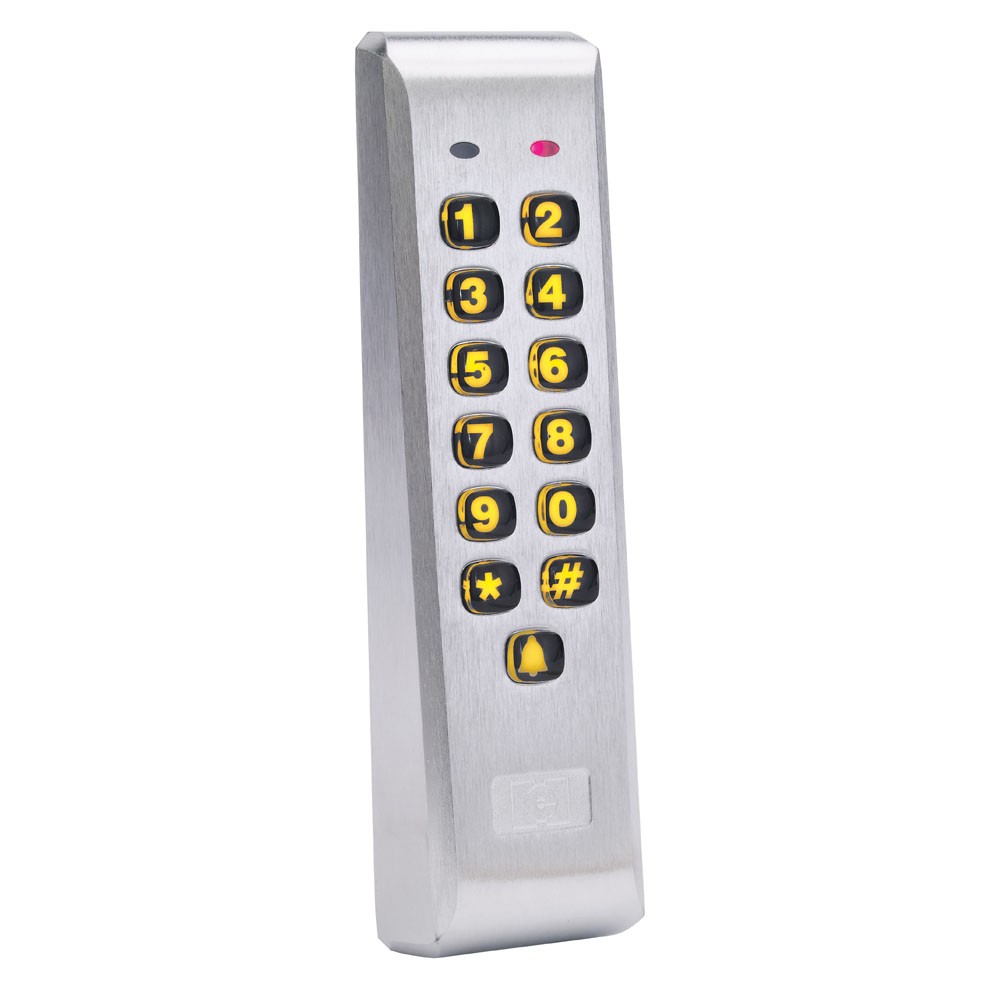

The Door♦Gard Series SSWiLM keypad combines elegant looks with a mullion mount design in a rugged, vandal resistant case, which you can use for almost any application. The SSWiLM has hardened backlit keys designed to perform in medium to high traffi c areas and in rough duty environments. The electronics are also conformal coated, which makes the keypad suitable for indoor or outdoor applications.

  • Vandal Resistant Case
  • Sealed for Indoor or Outdoor Applications
  • LED’s for Relay Status Indication
  • Bell Output
US$205.37

Description:

Description:

Features

  • Surface Mount
  • Illuminated Hardened Keys
  • Rated for Greater than One Million Key Cycles

Applications

  • Low to Medium/Heavy Traffic Areas
  • Rough Service Environments
  • Mullion Frame Mounting
  • Dimly Lit Areas

Specifications:

Specifications:

  • Case Dimensions: 6-1/2” L x 1-3/4” W x 1-1/8” D
  • Electrical: Voltage: 5-12 VDC (keypad) 12-24 VAC/DC (controller)
  • Current (max): 120 mA
  • Relay Contacts:
    • Main Relay (controller): 2 Amps
    • Aux Relays (controller): 1 Amp
  • Bell Relay:
    • Form A; 1 Amp @ 30 VDC;
    • 500 mA @ 125 VAC
  • Environmental:
    • -20º F to 130° F
