Kaba Mas CDX-10 #9 Strike High Security GSA Approved Door Lo

SKU # KU/CDX-10-9

The CDX-10 consists of an X-10 high security style 1 lock, Federal Specification FF-L-2740B & FF-L-2890A, mounted on a deadbolt base plate. The base plate is surface mounted to the inside face of the door. The deadbolt base plate has two essential features: It provides a means of latching the bolt in the retracted position, which prevents the bolt from being inadvertently extended; and turning the knob on the base plate will retract the bolt to allow egress.

Kaba Mas Limited Use Clause for X-10 Series: Section 1.1.1 Limited Use. "Locks tested and qualified under this specification are to be sold only to the Federal Government, Government contractors specifically authorized to purchase these locks, or other organizations specifally authorized or required by the Government to use these locks." See Full Limited Use Clause below.

** Kaba-Mas has announced that the color of all X-10 models will change from gray to black. We will no longer have these locks with a gray finish.

Strike: CDX-10 with #9 Strike (for Double Door).

Delivery: The Kaba Mas CDX-10 #9 Strike High Security GSA Approved Door Lock is factory-ordered, please allow 1-2 business weeks' lead time.

US$1,752.63
  • Buy 3 or more for US$1,717.58
  • Buy 6 or more for US$1,682.52
  • Buy 10 or more for US$1,647.47

Description:

Description:

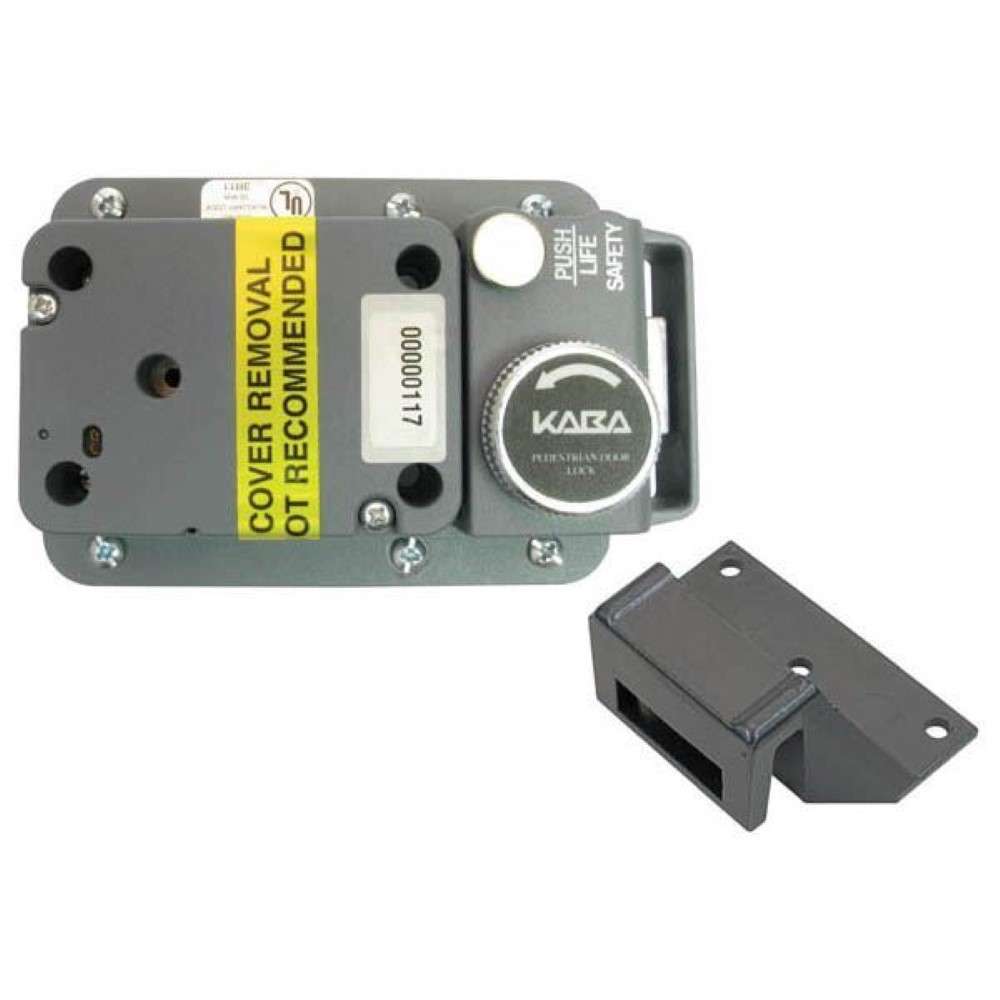

Kaba Mas CDX-10 #9 Strike High Security GSA Approved Door Lock

CDX-10 High Security Lock - Pedestrian Door Deadbolts.
The Kaba Mas CDX-10 consists of an X-10 high security lock, Federal Specification FF-L-2740B, mounted on a deadbolt base plate. The base plate is surface-mounted to the inside face of the door. The deadbolt base plate has two essential features.

First, it provides a means of latching the bolt in the retracted position. This prevents the bolt from being inadvertently extended.

Second, turning the knob on the base plate will retract the bolt to allow egress.

The Kaba Mas CDX-10 was approved by GSA to meet requirements of Federal Specification FF-L-2890B, Type VI.

The X-10 is approved by the GSA for use on approved Class 5 and Class 6 Filing Cabinets and Class 5 Security Vault Doors. The X-10 is self-powered using "green" PowerStar™ technology. Simply rotate the dial to power up the lock and enter the combination. Intuitive, visual controls guide the operator through programming and audit features. The X-10 provides all the benefits of high-security electronic locking while maintaining the reliability of a mechanical lock, independent of batteries or outside power sources.

Secure Tradition.
The Kaba Mas X-0 series is the trusted choice for securing the US Government's most sensitive material. The X-0 series first introduced in 1992 as the lock to meet the strict requirements of Federal Specification FF-L-2740. This specification is the US Government's highest security standard for electro-mechanical locks. The X-10 represents the latest edition to this secure tradition. The X-10 is the GSA (General Services Administration) approved lock for FF-L-2740, latest revision B, Style 1 applications. The X-10 is approved by the GSA for use on approved Class 5 and 6 filing cabinets and Class 5 Security vault doors.

Why the X-10?
The X-10 was designed and developed as a direct result of the latest revision to federal specification FF-L-2740, now Revision B. This revision calls for two distinctly different lock styles. Be aware that the characteristics and operating features of a "Style 1" and "Style 2" lock are not equal! The X-10 is the only self-contained lock and now, with the backlit LCD display, clearly represents the best overall value. The X-10 is the lock awarded the distinction of being approved for Style 1 Applications.

User Friendly Features.
The X-10 was designed with similar features and functions of its predecessor, the X-09. This minimizes the need for user training. The X-10 maintains the already familar product operating features. The X-10 uses the same "Green" self-powered technology - simply rotate the dial to power-up the lock. The propietary Kaba Mas self powered feature eliminates the concern of an unexpected failure due to battery life. The X-10 retains the same three security modes, along with a full complement of audit features.

What's New?
The following chart lists the enhanced features of the X-10 versus its predecessor the X-09:

Feature X-09 X-10 Comments
Backlit Display N/A Standard Ease of Use
Lock Case Field Assembly Through Case Mounting Ease of Installation, Sealed Case
Serial Number Six-Digit Eight-Digit X-0 Series, 1 Million Sold
Lock Motor Stepper Motor DC Motor New Lock Design
Lock Cable Orientation 3 Hrs. Behind Bolt Opposite of Bolt New Lock Design
Lock Bolt Options Flush & Extended - 4 Options One Bolt Flush - Tapped Enhanced Design, Fewer Parts
Product Identification "Dial Ring" Factory Location, Month & Year Made Product ID, Location, Month & Year Made Product Differentiation
ID Stamp Location 9:00 8:00 Product Differentiation


The X-10 has been designed to enhance user friendly features, while improving security. For example, the lock case incorporates a through case mounting feature to imporve to improve ease of installation while protecting the lock's internal electronics and mechanisms. The lock case has a security seal which provides a visible indication the lock has been accessed.

National Stock Numbers (NSN): 5340-01-498-2759

CDX-10 Combination Deadbolt lock for pedestrian doors with a NON drill resistant (Class N) dial ring mounting plate.

Special Orders: For pricing on any Kaba Mas Access Control Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.
