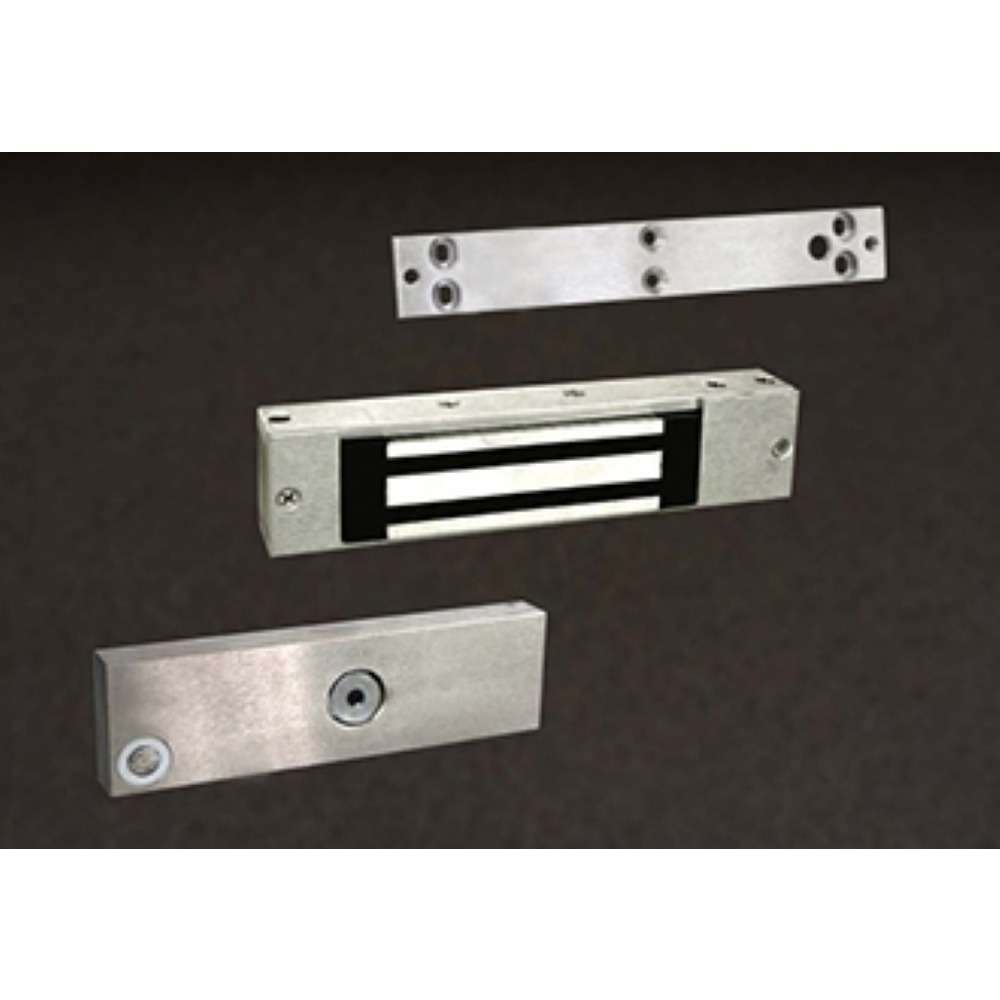

Dortronics 1107xD Slim Mag Lck Integral Position Switch SPDT

SKU # DT/1107XD

Dortronics 1107xD Slim Mag Lck Integral Position Switch SPDT

  • NFPA 101 / BOCA Compatible
  • 600 Pounds of Holding Force
  • Shallow 1-1/4” Mounting Profile
  • Efficient-Low Current Draw
  • Certified to UL294 for Access Control
US$432.25

Description:

Description:

Dortronics 1107xD Slim Mag Lck Integral Position Switch SPDT

Ultra Slim Profile:

Designed to fit narrow style header applications, the 1- 1/4” lock body depth greatly reduces the need for angle mounting brackets and filler plates, saving installation time and expense.

Reliable & Versatile:

This state-of-the-art electromagnetic locking device provides positive, instantaneous door control. Models are available for single outswing, inswing, and sliding doors or gates. Filler plates, angle brackets, and other mounting adapters are available to accommodate a wide range of door and frame types and conditions.

NFPA Life Safety Compatible:

Electromagnetic locking devices function independently of mechanical locks and are ideal for use with fire and hazard detection systems to provide unobstructed egress upon loss of power due to an alarm condition.

Concealed Door Status Switch:

A concealed Door Position Switch is included to report door status to monitoring equipment for the detection of open Propped or Forced door conditions. Safe Operation: All 1107xD electro-magnetic locking devices are inherently fail-safe, releasing instantly upon command or loss of power. Both locking and unlocking are accomplished with ease and efficiency. The well confined magnetic field of these locks allow them to be used in computer rooms and other electronically sensitive areas. The built-in Transient Surge suppression protects the electromagnet from voltage spikes.

Field Convert to Inswing:

The 1107xD Maglocks were designed to accept the 1095-07 Inswing Conversion Kit. Change from outswing to inswing door applications on site utilizing the kit which includes a Z-Bracket and angle mounting bracket complete with hardware and drilling template.

Field Convert to Inswing:

The rugged all-metal design and durable construction ensures unlimited lock and unlock cycles without electrical fatigue or mechanical breakdown. Our locks are manufactured to the most stringent quality control standards. This allows Dortronics to offer a Lifetime Limited Warranty on all 1107 Series electromagnetic locks.

Specifications:

Literature:

Product Videos:
