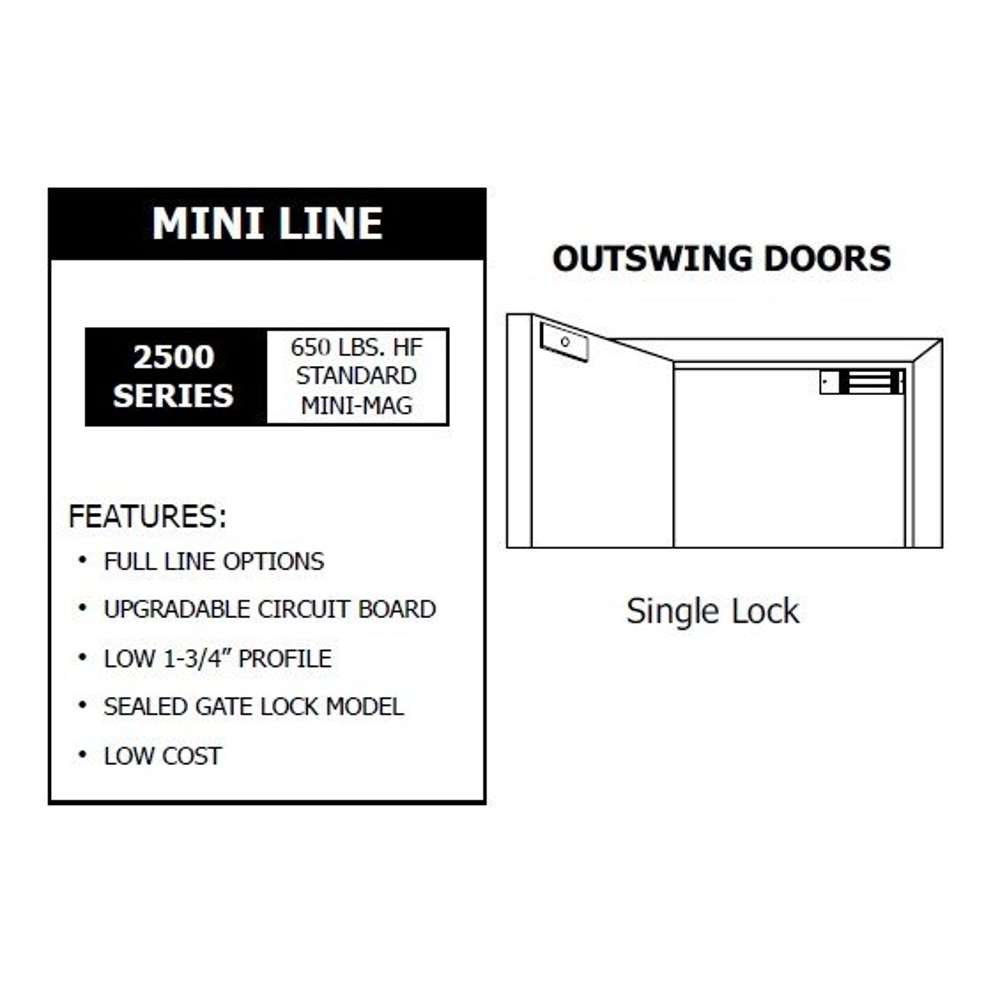

2511 DSM 28 650 LB MINI MAG OUTSWING w-DOOR STATUS SWITCH

SKU # DY/2511-DSM



Read Review(s) | Log in to Review

Dynalock 2511 DSM 28 650Lb Mini Mag Outswing W/ Dps
  • Holding Force - 650 lbs holding force provides for effective traffic control.
  • 4 Operating Voltages
  • Low Power Consumption conserves energy, reduces operating cost, and extends battery backup time
  • A Totally Plated Coil and armature provides protection against corrosion
  • No Residual Magnetism - The lock releases without delay when de-energized
  • Built-In Spike Suppression protects other solid-state components
US$319.20

Description:

Description:

Dynalock 2511 DSM 28 650Lb Mini Mag Outswing W/ Dps

Holding Force: 650 Lbs.
Input Voltage: 12 or 24 VDC/VAC (Field Selectable)
Current Draw: 0.5A @ 12V Each Coil; 0.25A @ 24V Each Coil
Contact Ratings:

  • DSM - 0.25A @ 24VDC/VAC
  • DYN - 0.25A @ 24VDC/VAC
  • ATS - 0.25A @ 24VDC/VAC

Coil Resistance: 53.8 Ohms (+/-10%) Blk/Blk, Wht/Wht

Specifications:

Literature:

Product Videos:
