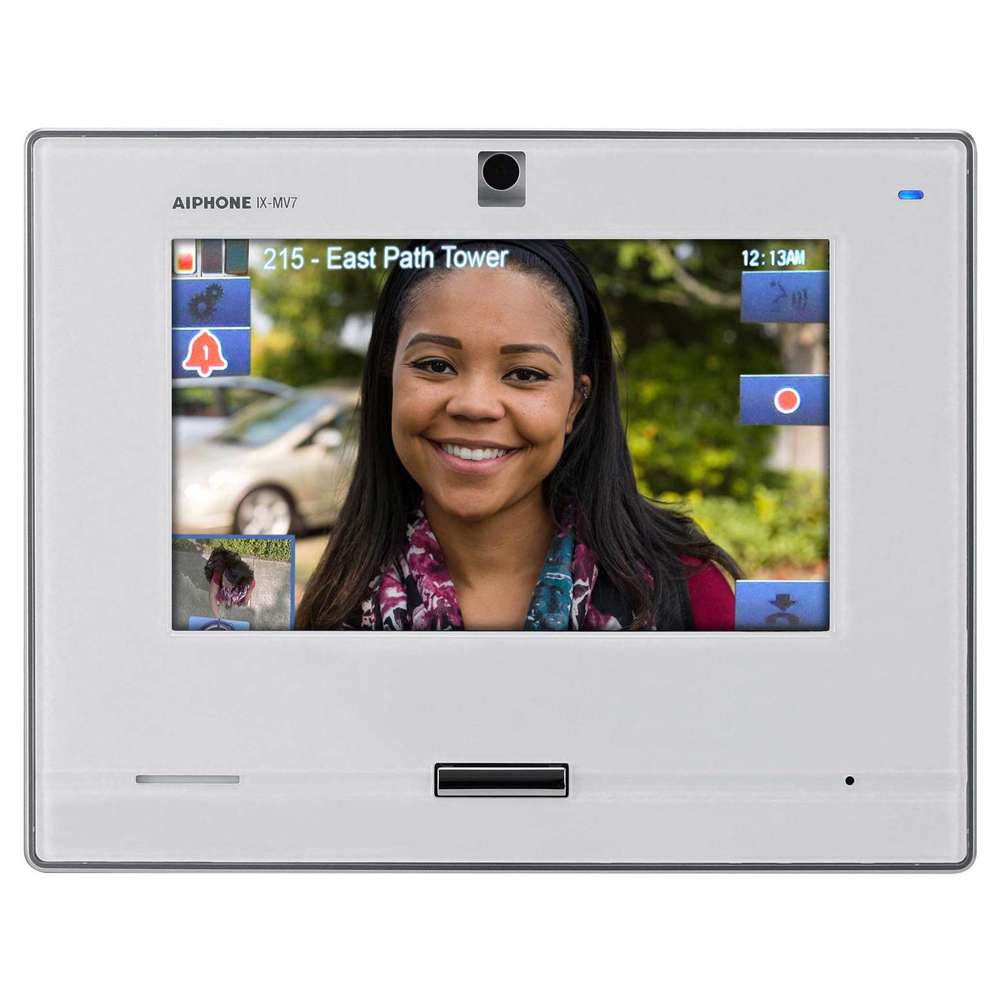

Aiphone IX-MV7-W SIP Video Master Station 7"

SKU # AK/IX-MV7-W

The IX-MV7-W is part of Aiphone

Specs

  • Power Source PoE (IEEE 802.3af class 0)
  • Power Draw 4.32 Watts
  • Screen 800x400 7" LCD TFT Touchscreen
  • Camera ⅓" CMOS 720p
  • Communication Full-duplex Hands Free
  • Audio Codec G.711 (μ-law, A law), G.722
  • Video Codec H.264/AVC, Motion JPEG
  • Port Security IEEE 802.1X
  • Operating Temp 32° - 104°F (0° - 40°C)
  • Dimensions 6-3⁄4" H x 8-11⁄16" W x 1-1⁄4" D
  • Mounting Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.

Delivery: The Aiphone IX-MV7-W SIP Video Master Station 7 is factory-ordered, please allow 3-7 business days' lead time.

US$1,426.60

Description:

Description:

Aiphone IX-MV7-W SIP Video Master Station 7

The IX-MV7-W SIP Complaint Video Master Station is an IP addressable hands-free master station with a 7 color touchscreen. Features video entry security, internal communication, and emergency stations.

Features and Benefits:

- SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
- ONVIR® Profile S Complaint.
- 802.3af PoE, Class 0.
- 7 TFT LCD touchscreen.
- Use built-in cameras for two-way master-to-master video conferencing (w/privacy shutter).
- Hands-free or push-to-talk communication.
- 8 customizable speed dial buttons.
- Turn your master into a virtual receptionist - ideal for unmanned waiting areas or unstaffed lunch hours.
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone).
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously.
- 2 contact outputs, 4 trigger inputs.
- 8Ω 1/2 watt speaker output provides better coverage for announcements.
- 600Ω audio input.

Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.
