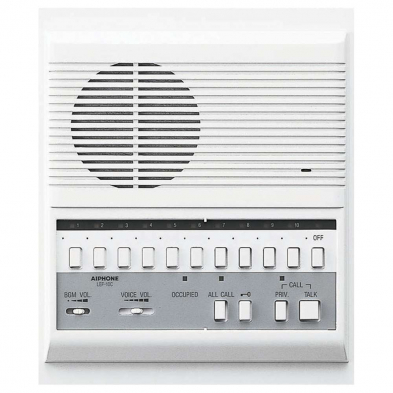

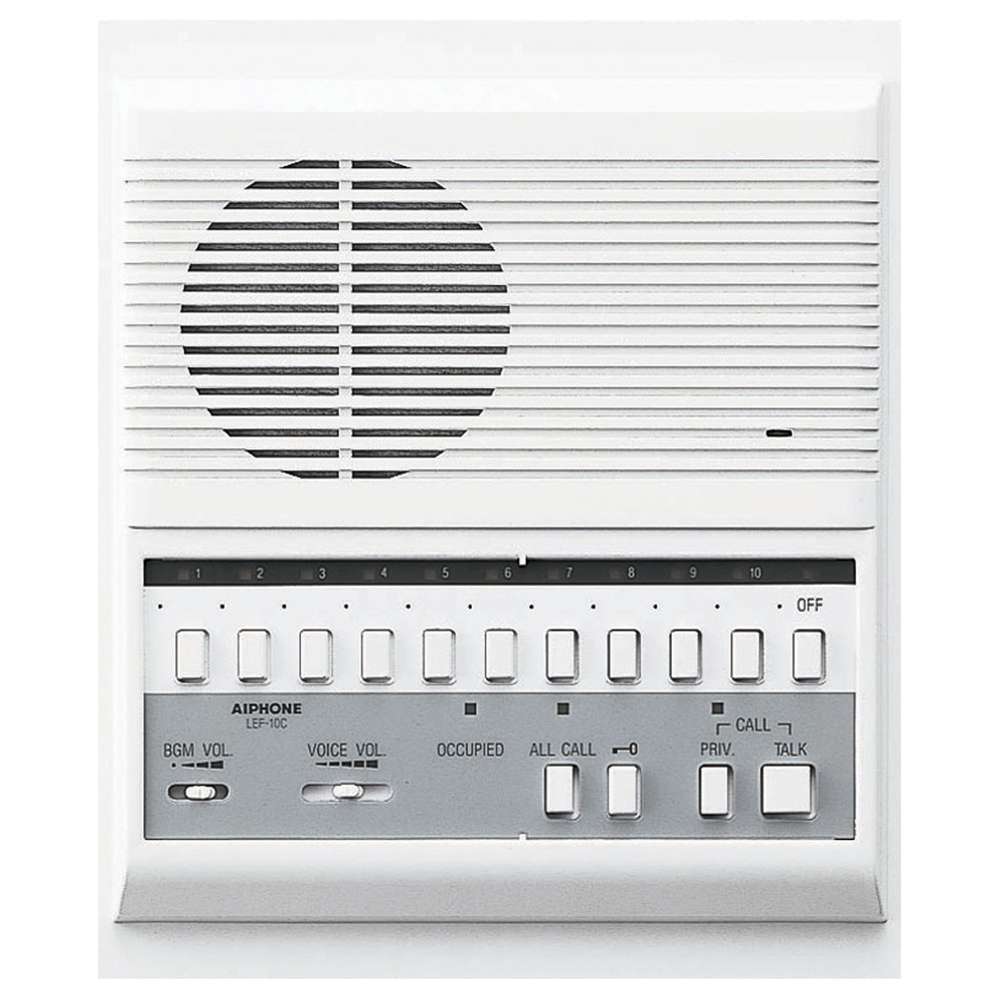

Aiphone LEF-10C 10-Call Semi-Flush Mount Master

SKU # AK/LEF-10C

The LE-10C is part of Aiphone

Specs

  • Power Source 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.
  • Output 800mW @ 20Ω (reception), 500mW @ 20Ω (transmission)
  • Communication: Press-to-talk, release-to-listen at master station. Hands-free at responding station.
  • Talk Channel 1 talkpath. Occupied LED when in use.
  • Wiring 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
  • Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun
  • Capacity Up to 11 stations, intermixable
  • Wiring Distance 650' w/22AWG; 1600' w/18AWG
  • Operation Temp 32°~104°F (0°~40°C)
  • Dimensions 8-1/18" H x 7-1.2" W x 2-3/16" D

Delivery: The Aiphone LEF-10C 10-Call Semi-Flush Mount Master is factory-ordered, please allow 3-7 business days' lead time.

US$389.20

Description:

Description:

Aiphone LEF-10C 10-Call Semi-Flush Mount Master

The LEF-10C is a selective calling open voice style master station, used to answer calls from other remotes or masters. The system can be designed to include any combination of master and sub stations. The LEF-10C has the ability to communicate with ten other stations, selectively release doors, plus make an All Call and/or background music. The LEF-10C flush mounts into a wall.

Features and Benefits:

- Provides internal communication to LEF master stations or LE door stations.
- ABS plastic housing.
- Selective door release.
- Selective Call and Optional All Call.
- LED and call-tone indicators.

Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.
