Dortronics 1192-10 Angle Brckt 1-1/2x1-1/2 Angle 12-1/2 Long

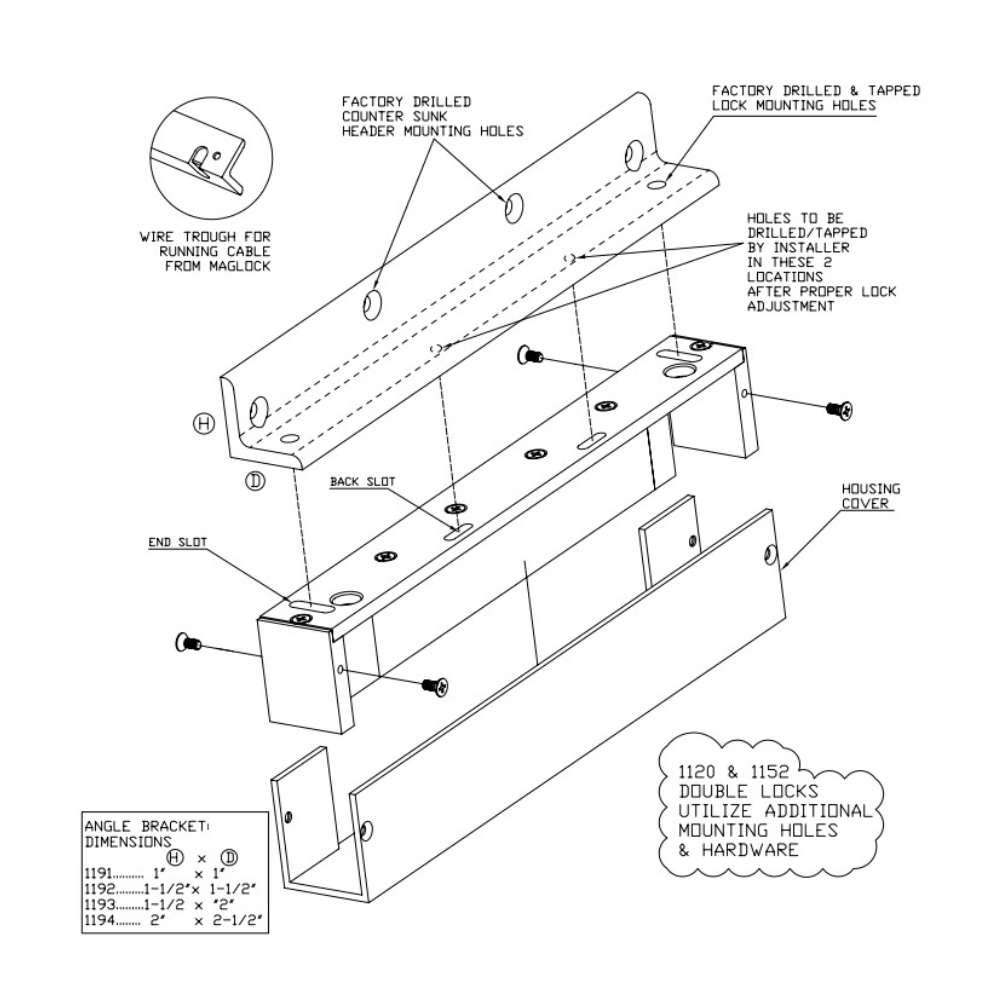

Installation:
Typically, these locks are mounted on an out swinging door using the Header mounting plate accompanying the unit. This mounting plate has elongated slots for ease of alignment and threaded holes for secure attachment of the lock to the plate. An access hole is also provided in the mounting plate to accommodate the power and control wiring. The armature plate mounts to the door with thru bolting hardware provided.
