5025 SINGLE ZONE POWER SUPPLY 1 AMP SELECTABLE 12VDC / 24VDC

SKU # DY/5025

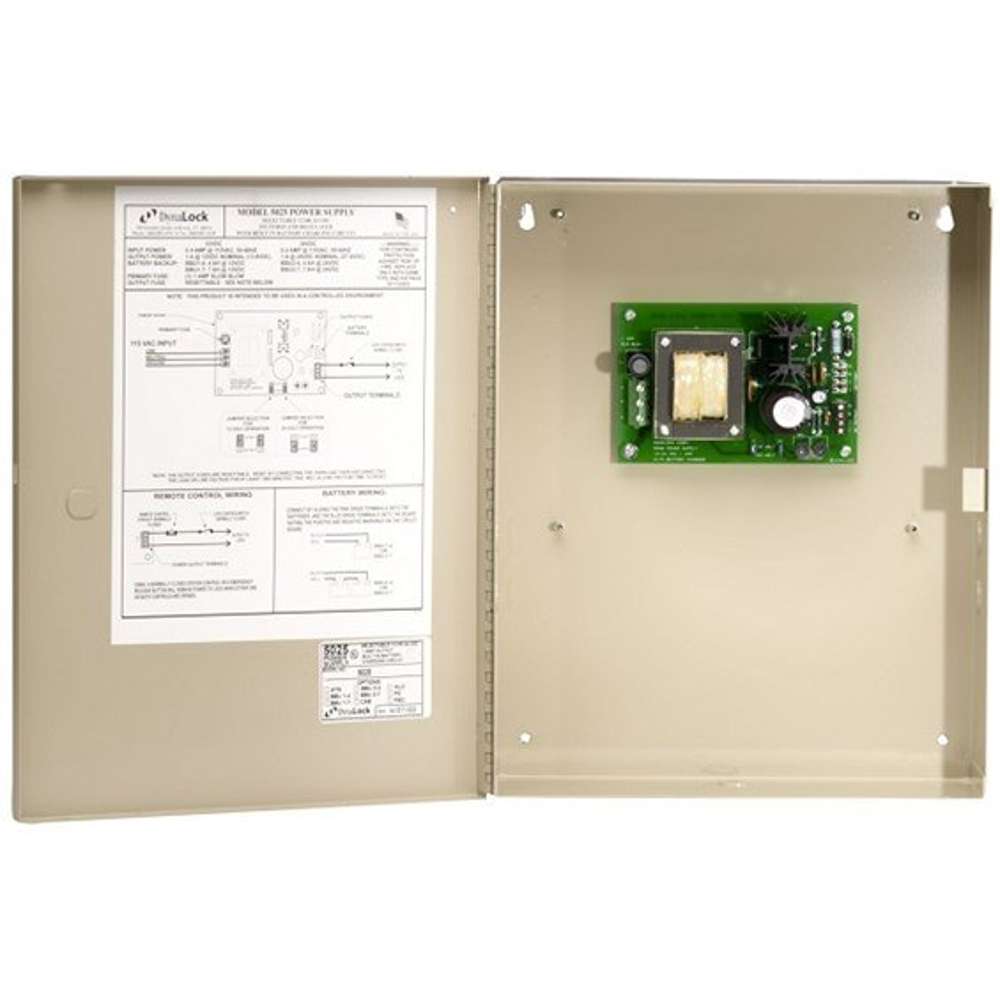

Dynalock 5025 Single Zone Power Supply 1 Amp Selectable 12Vdc / 24Vdc
  • Single Zone Power Supply
  • 1A at 12 or 24VDC
  • Field selectable voltage output: 12VDC or 24VDC
  • Power output: 1 Amp @ 12/24VDC
  • Filtered and regulated voltage output
  • Built-in battery charging circuit
  • Choice of 4 or 7 Amp/Hour battery back-up capacity
  • May be connected to fire alarm with N.C. contacts
  • 15” x 12” x 4” hinge cover steel enclosure with knockouts
  • Emergency Shutdown
  • Lifetime Warranty
US$144.00

Description:

Description:

Dynalock 5025 Single Zone Power Supply 1 Amp Selectable 12Vdc / 24Vdc

The Dynalock 5025 is a light duty power supply with a field selectable DC voltage and a self-resetting fuse that eliminates the need for changing fuses following a power surge.

Resetting the fuse is as simple as shuting down the power supply or disconnecting it from power. The unit is supported by a backup battery that continues to provide power after a power outage. Solid state electronics ensure reliable performance.

This power supply is ideal for access control devices, magnetic locks, and CCTVs.

UPC: 609010500168

These access control power supply/chargers are specifically designed for use with access control systems and accessories. These units convert a 115VAC/50-60Hz input into two outputs  (see options). Outputs will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, ect. These outputs will operate in both Fail-Safe and Fail-Secure modes

Technical Specifications:

  • Fuse: Self Resetting (remove load or input power)
  • Output Current: 1A @ 12VDC; 1A @ 24VDC
  • Output Voltage: 12VDC - nominal 13.8V; 24VDC - nominal 27.6V
  • Input Power: 0.45A @ 115VAC, 50-60 Hz
  • Color: Off-white
  • Weight: 10 lbs.
  • Enclosure: 4” x 12” x 15” Steel
