Dortronics 43211-L Mantrap locks 2-Doors 1-Room Locked

SKU # DT/43211-L

Dortronics 43211-L Mantrap locks 2-Doors 1-Room Locked

Includes:

#43211-CB

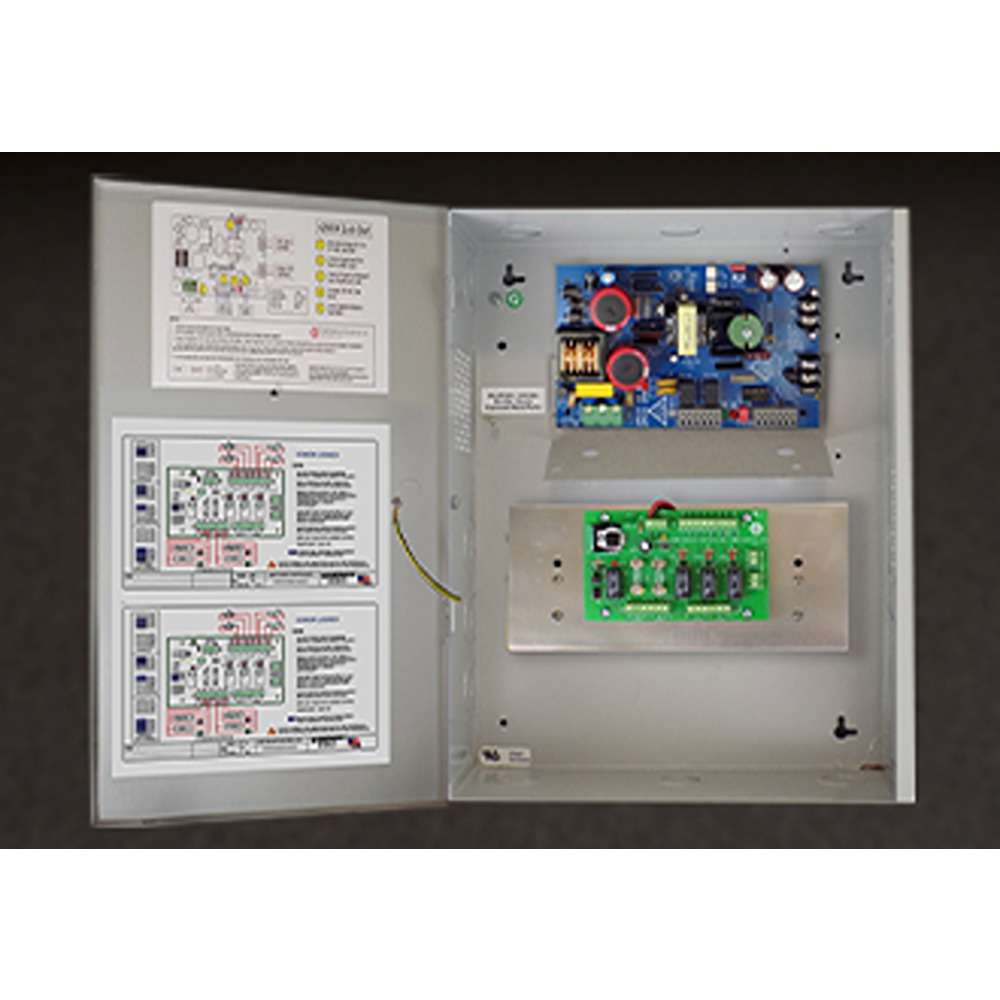

Lock Controller & Power Supply
12/24 VDC 4 amp Power Supply with Control Relays & Fire Alarm Interface

#5276-MP9xE3
Emergency Release Push Button
Momentary Push Button for Emergency Lock Release

#WR5276-HD29xLRGxCB
Privacy Push Button Actuator Illuminated Momentary Push Button with LED Lock Indicator

#7201xL/RxCB
OCCUPIED LED Indicator
Hi-Intensity LED Indicator

#3300xD
Electric Strike with Bolt Monitor
Standard ANSI strike with SPDT latch switch

#1107xD
Maglock with Door Position Switch
600 Lb. holding force with SPDT door switch

US$1,004.25

Description:

Description:

Dortronics 43211-L Mantrap locks 2-Doors 1-Room Locked

Dual Voltage / Built-in Power Supply

The system provides 4 amps of 12 or 24 volts DC to power low-voltage locking mechanisms.

Versatile Control

The communicating bathroom system is designed to operate virtually any low-voltage fail-safe electric lock. Maglocks can be used as well with push buttons at each door to allow the user to exit.

Mechanical Egress

Electric strikes offer a simple mechanical means of exiting the bathroom when used with standard manual locksets having the “storeroom” function. Unimpeded egress is possible at any time. Emergency access to the bathroom by key is also possible when using manual locksets. A latch bolt monitor switch can be used to signal the controller to unlock both doors when either lockset handle is operated.

Visual Status Indicators

Hi-Intensity LEDs indicate when the bathroom is occupied. The interior “privacy” push buttons are also illuminated to show that the privacy function has been activated and that the doors are locked.

Fire Alarm Interface

The power supply includes a fire alarm interface that cuts power to the locks for immediate egress during an emergency. This redundancy provides an extra level of safety to assure free egress in all conditions.
