Dortronics 48501 2-5 Door Mantrap Nema 4Amp Supply 5 Door

SKU # DT/48501

Dortronics 48501 2-5 Door Mantrap Nema 4Amp Supply 5 Door

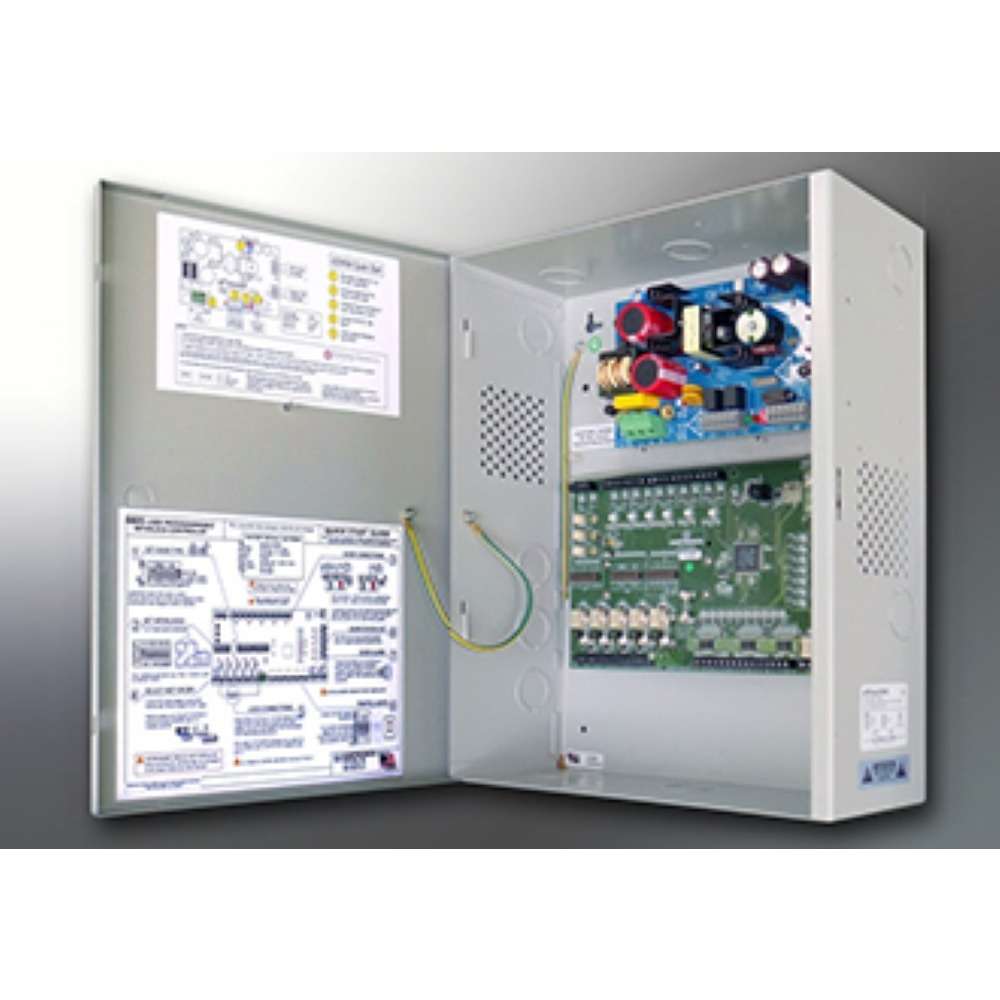

48501 PLC Controller Powered:
Mounted in an enclosure with 294 power supply. Controls 2 – 5 Doors in Any Combination Locked or Unlocked

US$1,631.50

Description:

Description:

Dortronics 48501 2-5 Door Mantrap Nema 4Amp Supply 5 Door

Field Selectable Door Sequence & Functions

The 48500 PLC interlock controller is a costeffective method for operating door interlock and mantrap systems of up to five doors. The fully integrated controller is a one board solution that allows the installer complete control of all operating and configuration options without complex software.

Environmental or Security Applications

Suitable for air locks or security mantraps with two to five doors that are locked or unlocked. This controller has outputs for traffic lights and door alarm. It provides adjustable timed delays for a Propped Door, Panic Release & door Unlock Time. There are also optional AUX outputs available to control automatic door with locks.

Access Control Compatible

Any access control system can be used with the 48500 series controllers. The request for access input recognizes any normally open dry contact. Each door has a normally open dry contact output to mirror door status back to an access control panel or remote console

Available with Power Supply & Enclosure

The 48500 PLC controller can be paired with a 4-Amp UL 294 Class 2 power supply (only the 4 amp includes a Fire Alarm connection) and all can provide power to operate maglocks, electric strikes and traffic lights. The controller is also available without the power supply & enclosure for connection to an existing 12-24VDC power source.
