Dortronics 48901 2-9 Door Interlck Mount Nema Enclosure 9 Dr

SKU # DT/48901

Dortronics 48901 2-9 Door Interlck Mount Nema Enclosure 9 Dr

48901 DC Powered PLC Controller:

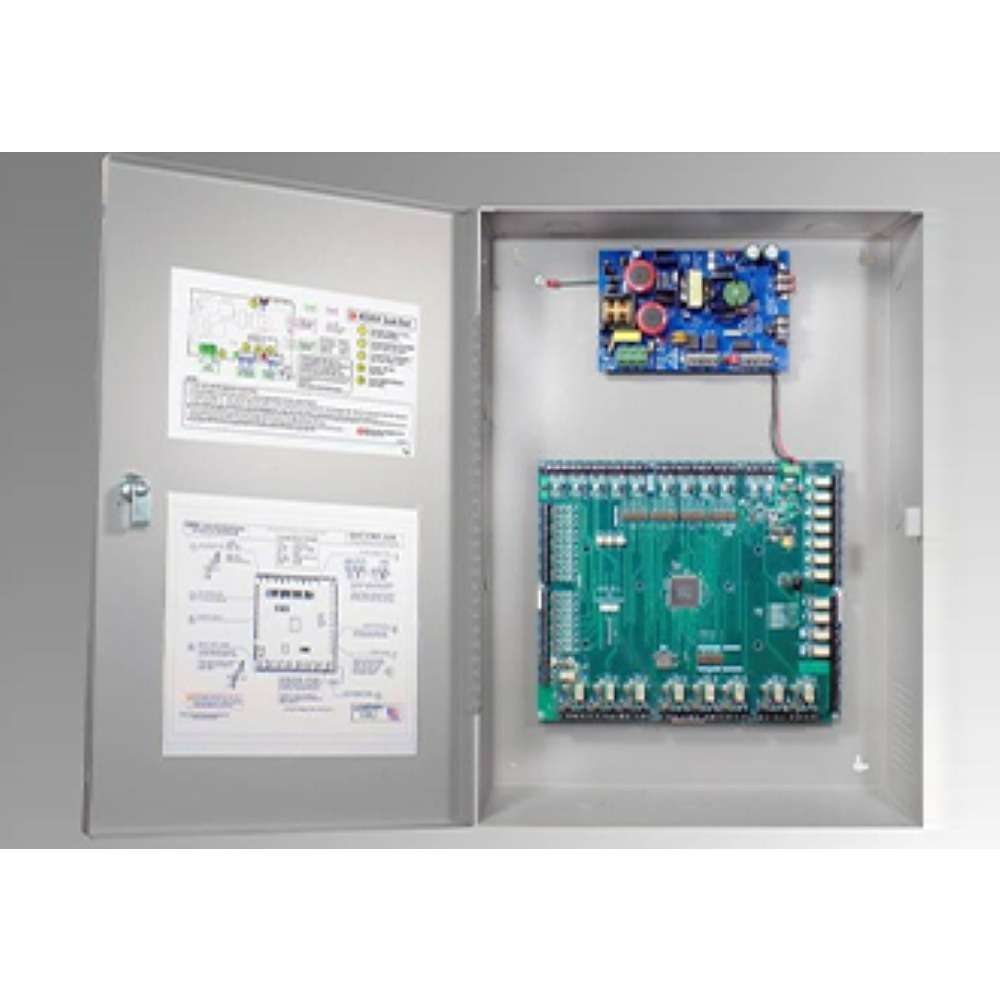

Mounted in an enclosure with 294 Class power supply. Controls 2 – 9 Doors in Any Combination Locked or Unlocked



US$3,126.50

Description:

Description:

Dortronics 48901 2-9 Door Interlck Mount Nema Enclosure 9 Dr

Field Selectable Door Sequence & Functions

The 48900 PLC interlock controller is a costeffective method for operating door interlock and mantrap systems of up to nine doors. The fully integrated controller is a one board solution that allows the installer complete control of all operating and configuration options without complex software.

Environmental or Security Applications

Suitable for air locks or security mantraps with two to nine doors that are locked or unlocked. This controller has outputs for traffic lights, door violation alarm and provides three individual timing sequences for, Propped Door Time, Emergency Overide Unlock Time & Rex Unlock Time.

Access Control Compatible

Any access control system can be used with the 48900 series controllers. The request for access input utilizes a dry contact. Each door has a formC SPDT dry contact output to mirror door status back to an access control panel or remote console.

Available with Power Supply & Enclosure

The 48900 controller can be paired with a 4, 6 or 10 Amp UL 294 power supply that includes a Fire Alarm connection for emergency egress and can provide power to operate maglocks, electric strikes and traffic lights. The controller is also available without the power supply & enclosure for connection to an existing 12-24VDC power source.
