Hager 9629CS-96-2x5 96in 150Lb 2x4 Hvy Duty Pocket Door Kit
Certifications Meets performance requirements of ANSI/BHMA 156.14 (Grade 1).
Type: D02311-150
ADA Compliant (Not with soft close mechanism)
Door Specifications: For doors 1-3/8" - 1-3/4" (35mm - 44 mm) thick, up to 3'0" (914 mm) wide and 8'0" (2438), For door weighing up to 150 lbs (68 kg)
Door Thickness: For doors 1-3/8" - 1-3/4" (35mm - 44 mm) thick
Installation
- For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately),
- Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width.
Notes
- For size options review the Size Options chart
- For kit contents see Related Files
Options
- Soft Close mechanism (1-269-8651) is available, sold separately. (Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold)
- See Related Files for additional information.

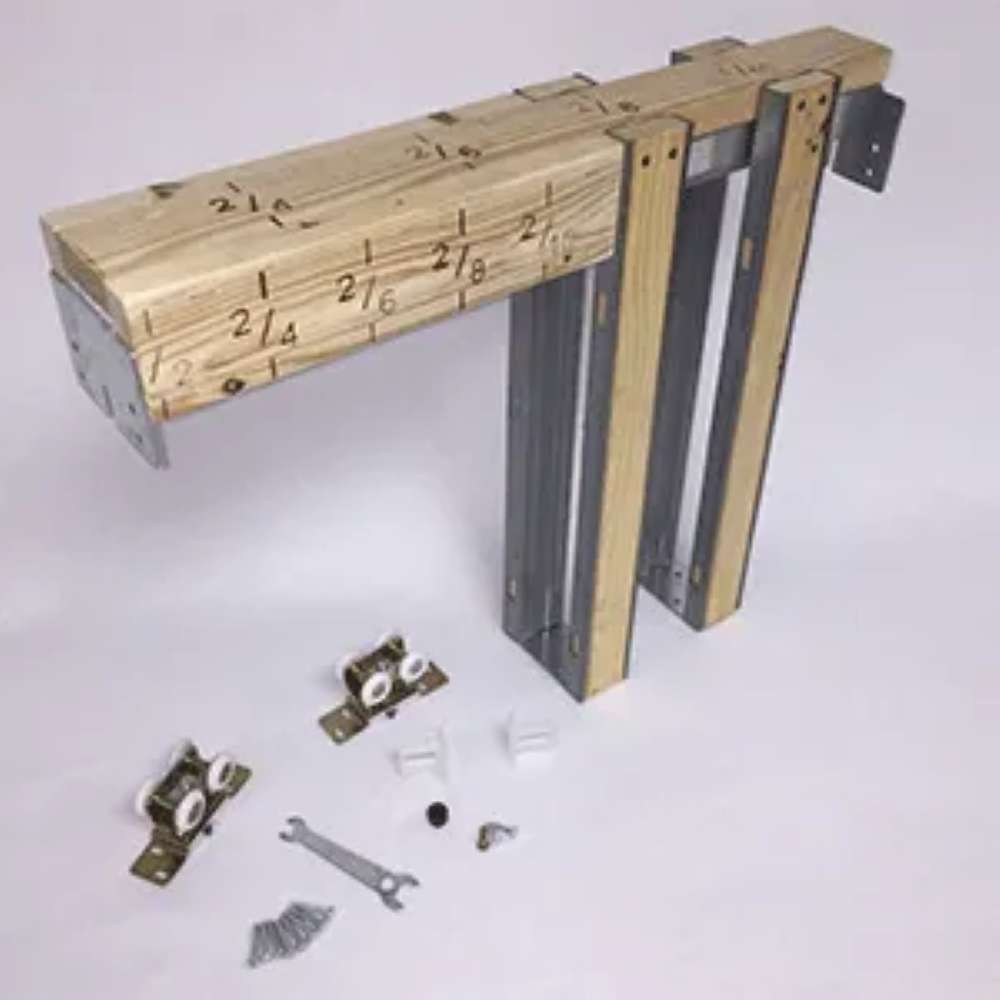

Product Description: For 3'0" wide x 8'0" high doors up to 150 lbs (68 kg) per door.
Specifications
- Heavy-duty, V-groove, jump-proof aluminum track
- Pre-assembled header assembly goes up quickly
- Easy door installation and removal for painting and repair
- 2 pair of wood split studs with wood inserts • size 3/4" (19 mm) x 1-5/8" (26 mm) length relative to height
- Steel encased for rigidity and to prevent fastener penetration into the pocket
- Track header unit attaches to rough framing at both ends
- Split studs can be nailed or screwed to track header
