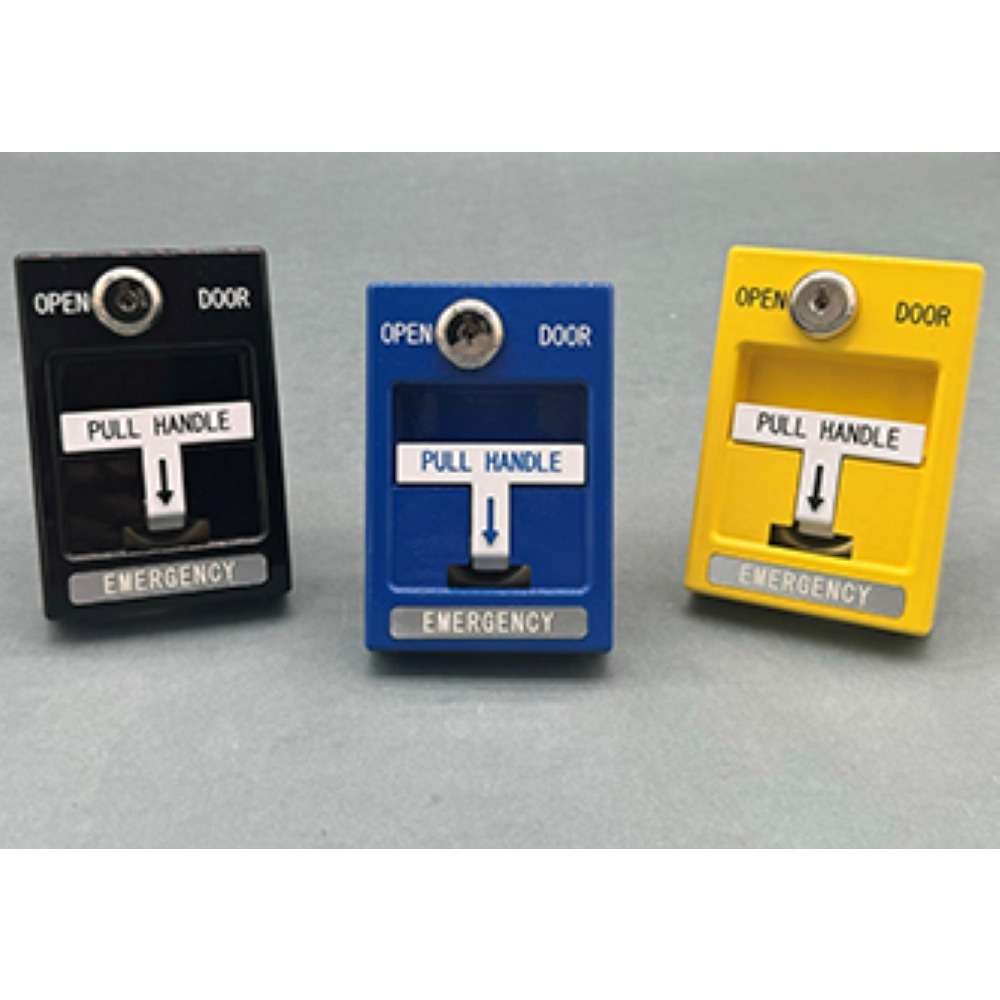

Dortronics 6510/BL-S35 Pull Station Two Spdt C Switches Blue

SKU # DT/6510-BL-S35

Dortronics 6510/BL-S35 Pull Station Two Spdt C Switches Blue

Features:

  • Highly Visible
  • Reliable Operation
  • Key Reset
  • Deter Unauthorized Access
  • Medical Emergencies
  • Natural Disasters
US$152.75

Description:

Description:

Dortronics 6510/BL-S35 Pull Station Two Spdt C Switches Blue

Easily Recognized and Operated:

The 6510 Series of Emergency Pull Stations provide conspicuous signaling or release in case of emergency. These easy to operate stations require a single pull action to actuate. Dual SPDT switches allow connection to an Alarm or Access control system while simultaneously breaking or making power to a lock or siren using the second set of contacts.

Multiple Applications:

Ideal for use in Hospitals, Schools, Industrial facilities and office buildings. Use for emergency Exit door release with Badge in/out Access control systems, or door interlock and Mantrap type systems. The wide variety of colors make these units suitable for signaling an alarm panel of any Natural Disaster, Hazmat incident, or Medical Emergency. Deters unauthorized access, i.e., smoking in stairwells, and nuisance access to fire escapes.

Easy Mounting & Wiring:

Two mounting screws are all that’s needed to surface mount the 6510. The unit mounts to a standard single gang electrical box. Matching color back boxes are also available for surface mounting. Back boxes have conduit knock outs for easy wiring access. Wiring is accomplished by utilizing the screw terminals on the back of the unit to connect to any system or device. All units are pre-wired, simply select the wires needed for a Normally Open or Normally closed contact.

Key Reset:

Following actuation, the pull station is reset by opening the front cover (with the key provided) and installing a new acrylic break rod. Close and relock the cover and the 6510 is restored and ready for the next emergency.

Options:

A Piezo sounder may be attached to sound locally upon activation. Plexiglass anti tamper covers are also available for different applications to prevent false alarms.

Specifications:

Literature:

Product Videos:
