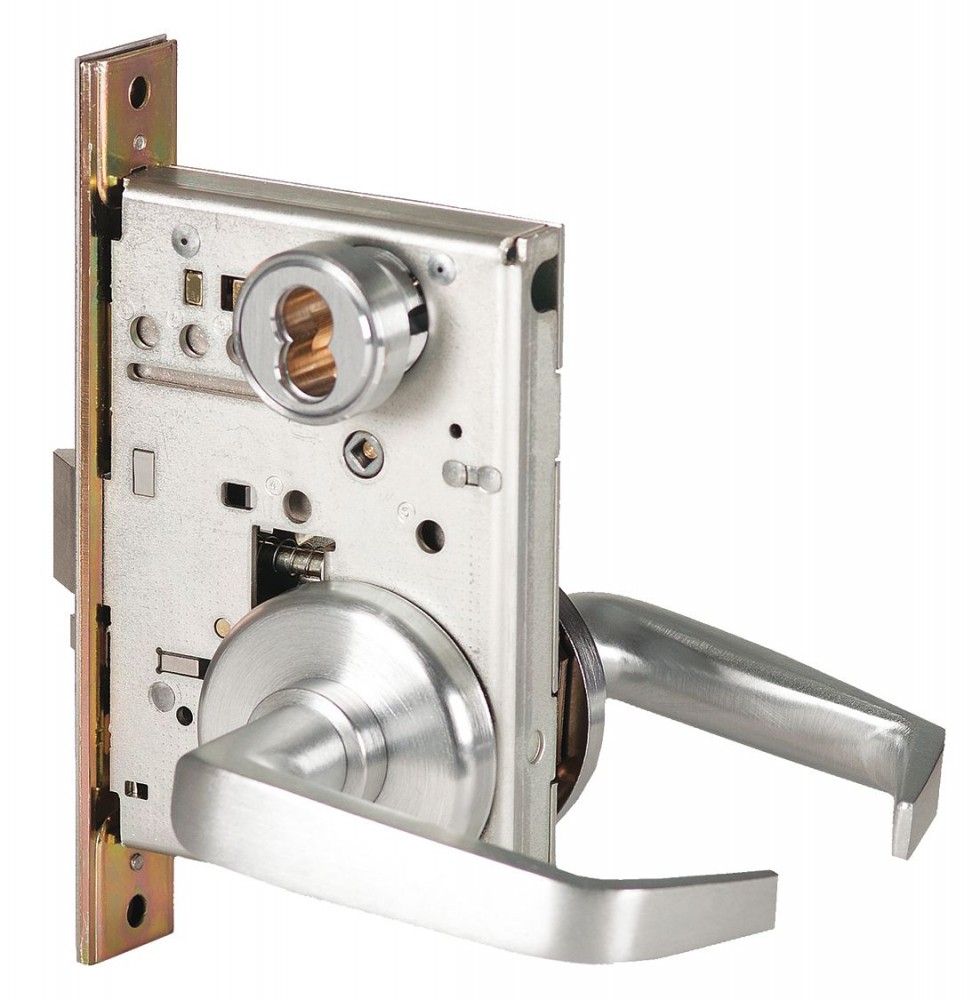

Best 45H Mortise Lock Series


  • The 45H mortise locks meet or exceeded the following standards:
  • American National Standards:
    • 45H Series - ANSI A156.13, Series 1000, Grade 1 Operational and Grade 2 Security.
    • Underwriters Laboratories®
  • Case: 0.095" cold rolled steel, 5 7/8" H x 7/8" D x 4 1/16" W. Steel is zinc dichromate plated for corrosion protection.
  • Faceplate: Brass or bronze material, 8" H x 1 1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during installation.
  • Strike: Brass, bronze, or stainless steel base material, 47/8" x 1 1/8" x 3/32" . Fits standard door frame cut out as specified in ANSI A115.1. Universal (non-handed) strike and strike box combination supplied standard with lock. Handed strikes (for use without strike box) available for special order.
  • Backset: 2 3/4"
  • Door Thickness: Standard lock configuration designed for doors 1 3/4" thick.
  • Latchbolt: Solid stainless steel, 3/4" throw. Latch is oilimpregnated for anti-friction operation. Reversible without opening case.
  • Deadbolt: Stainless steel, 1" throw.
  • Auxiliary bolt: Stainless steel, non-handed. #4
  • Standard Lever Handles: Brass, bronze, or stainless steel base material for standard lever designs.
  • Roses: Wrought brass, bronze, or stainless steel base material. H – Flat w/ round edge, 2 3/4" diameter.
  • Finishes 626 – satin chromium plated (brass base material)

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
Pricing varies based on options selected below.
