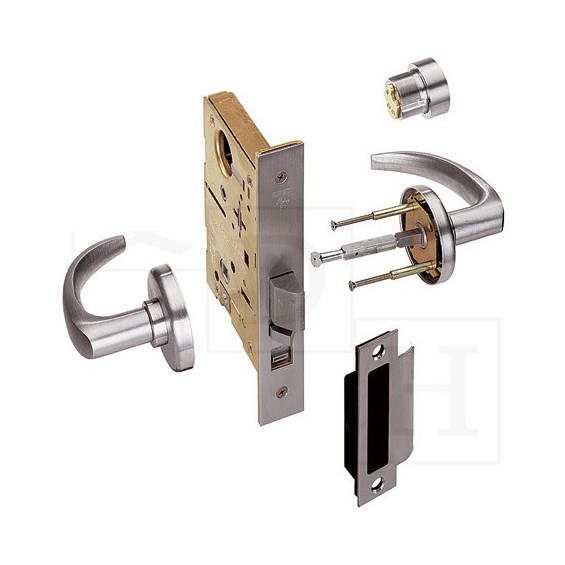

Best Lock 45H7TD15H626 Dormitory, Mortise Lock less core

SKU # BE/45H7TD15H-626

The Best Lock 45H7TD15H626 Dormitory, Mortise Lock is a Dormitory Mortise Lock.

Specifications include:

  • Standard mortise lock
  • 7 pin housing accepts all BEST cores
  • Dormitory
  • Single Keyed
  • Contour/angle return
  • Trim Style  - 2 3/4” dia.
  • Satin Chrome Finish
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W



Best Lock 45H7TD15H626 Dormitory, Mortise Lock less core

Convenient, Integrated Access Control!

BEST's IDH Max Series combines access control components - separate readers, strikes, and other equipment - into one durable lockset with only one connector. In addition to a lower visual profile, integrating components in the IDH Max reduces installation time and increases securtiy. Designed to function on interior or exterior doors, and compatible with most access control systems, IDH Max delivers convenient, versatile results in a wide range of applications.Integrated components.

The IDH Max from BEST offers convenience and efficiency for your electrified lock applications. Instead of installing reader devices, installing electrified strikes, installing door contacts and installing request-to-exit devices, you can now install the IDH Max in cylindrical or mortise lock applications. With IDH Max all of the formerly separate equipment needed to control access are self-contained in a single installation. The complexity of multiple wire runs is drastically reduced.

Features and Benefits:

- Integrated BAS1300/LNL1300 reader electronics board or (ISC) Intelligent System Control is embedded behind the escutcheon secured and out of site. Functions with Mercury on-line equipment only.
- Requires only one 4 conductor wire run.
- Reduces number of components installed and visible at the door (PRI, RQE push buttons and door contacts).
- Installation time is reduced.
- All of the door components are housed in one manufacturer's hardware.
- With the elimination of components, only the lockset is visible at the door.
- The reader is integrated into the lockset escutcheon.
- Operates with BEST interchangeable core as a mechanical override.

Mortise Features:

- Lock case meets the requirements as listed in the ANSI/BHMA A156.13 standard for Series 1000, Grade 1 Operational and Grade 2 Security locks.
- UL listed for GYQS Electrically controlled single point- Door contact, request-to-exit, and latch status sensors positioned inside lock case.
- The door contact magnet is installed behind the strike and out of site (except when deadbolt option is ordered).
- All sensors are standard in IDH Max mortise locks.
- The heavy duty design of the mortise lock results in less field maintenance and part failures.
- Twist off lever design protect internal lock parts from damage and failure.
- Oil impregnated stainless steel 3/4" anti-friction latchbolt reduces door closing force and wear.

Function: The Best Lock IDH-MAX Mortise Levers are available in Single Key Latch / Fail Secure (DEU) function.
Finish: The Best Lock IDH-MAX Mortise Levers come in Satin Chrome (626) finish.
Lever Design: The Best Lock IDH-MAX Mortise Levers come in 16 Lever Style (Curved no return) design.
Trim: The Best Lock IDH-MAX Mortise Levers comes with Proximity HID (PH) trim.

Cylinder Options: All functions are sold Less Cylinder; see "Companion Items" above with all Cylinder & Keying options.

Case: Heavy wrought steel, 5-7/8" H x 4-1/4" D x 1" W steel parts are zinc clichromate plated for corrosion protection.
Faceplate: Brass or bronze, 8" H x 14" W x 1/16" T. Lock face automatically adjusts to proper bevel during installation.
Strike: Brass, bronze or stainless steel base material, 4-7/8" H x 1-1/4" W x 3/32" T. Fits standard door frame cutout as specified in ANSI A115.1. Universal (non-handed) strike supplied standard with lock.
Backset: Standard 2-3/4" backset.
Door Thickness: For standard doors 1-3/4".
Installation: Lock requires modified door prep to mount the trim. Faceplate dimensions fit standard door preparation as specified in ANSI A115.1, Lockset is easily reversible to match door handing without opening the mortise case.
Latchbolt: Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Deadbolt: Solid stainless steel, 1" throw.
Auxiliary Bolt: Stainless steel, non-handed.
Escutcheons: 10-1/2" H x 3-5/16" W x 1" D (1" at the top, sloping down to 3/4" at the bottom).
Mounting: Knob and lever attached with hardened set screw on inside knob or inside lever.

Special Order Information: For pricing on any function or finish of the Best Lock IDH-MAX Mortise Levers not found on this page please contact Taylor Security direct via e-mail ( or call us toll-free at 1-800-676-7670.
