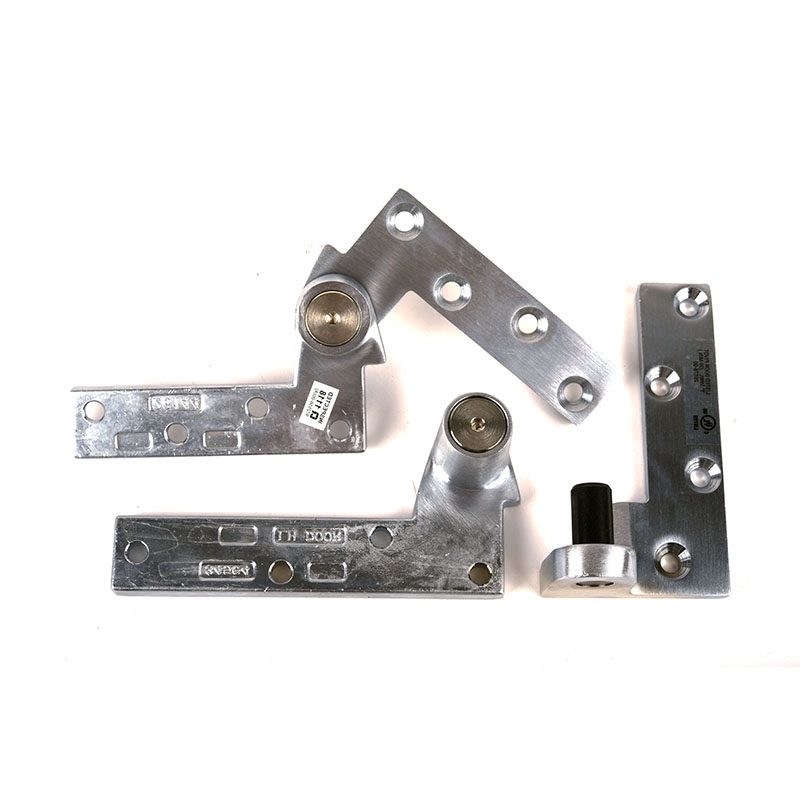

Ives-Glynn Johnson 7215-SET-RH-US26D Pivot Set

SKU # IV/7215-SET-RH-US26D

The Ives-Glynn Johnson 7215-SET-RH-US26D Pivot Set is a Pivot Set in Satin Chrome.

Features include:

  • Right Hand Door
  • Satin Chrome Finish
  • 3/4" Offset pivot, 500lb with top header mount
  • Maximum door load 500 pounds
  • Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
  • Vertical adjustment range 3/16", with positive locking
  • 7215 Set includes 7215 Top and 7215 Bottom
  • Made from cast brass
  • Meets ANSI/BHMA A156.4 C07131
  • 7215 - UL Listed, 20 minute fire doors
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$443.70
Comments or instructions

Description:

Description:

Ives-Glynn Johnson 7215-SET-RH-US26D Pivot Set

  • Maximum door load 500 pounds
  • Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
  • Vertical adjustment range 3/16", with positive locking
  • Handed LH or RH
  • Consists of 7215 Top header mount and 7215 Btm header mount
  • Meets ANSI/BHMA A156.4 C07131
  • UL Listed, 20 minute fire doors
  • Use 7215 INT Intermediate Pivot (handed) as needed.

Specifications:
