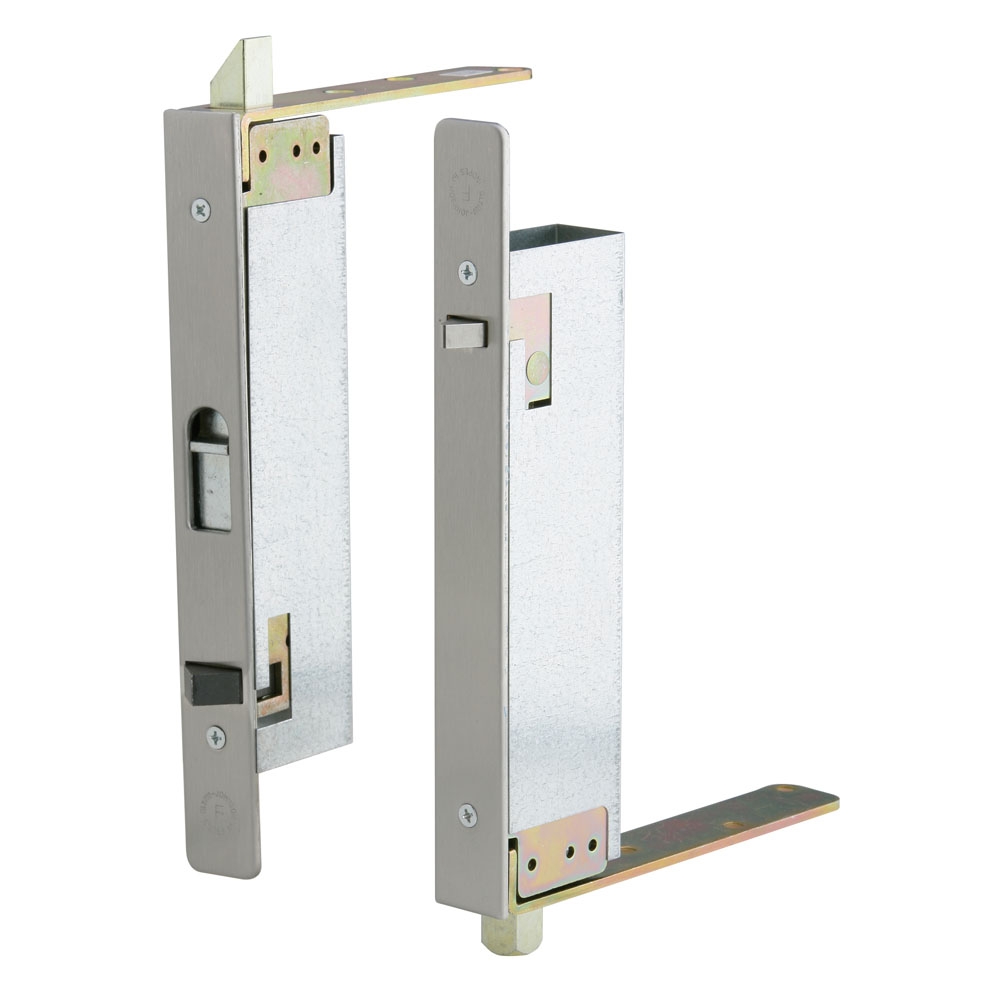

Ives-Glynn Johnson FB61P-WD-US32D Flush Bolts
Certifications
- Meets ANSI A156.3 Type 27
- UL Listed 90 Min fire doors 8’0" X 8’0"
Available in both automatic and manual styles
Designs for both hollow metal and wood door applications
A variety of bolt throw lengths and bolt diameters to meet many application needs
Flush bolts are non-handed for easy installation
Meet ANSI/BHMA A156.3
UL Listed for fire door applications
Flush bolts provide a secure opening by latching the inactive door. Designs include the offerings below. For more specific models within each offering, see the Ives Full Line catalog.
Automatic flush bolt: Fully automatic flush bolts ensure the inactive door is latched and bolts are extended when the active door closes. The inactive door is unlatched and the bolts retract when the active door is opened.
Constant latching flush bolt: Constant latching flush bolts ensure the inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. The inactive door will re-latch automatically when the door closes.
Manual flush bolt: Manual flush bolts must be extended and retracted manually, depending on when the inactive leaf needs to be secured or opened.
