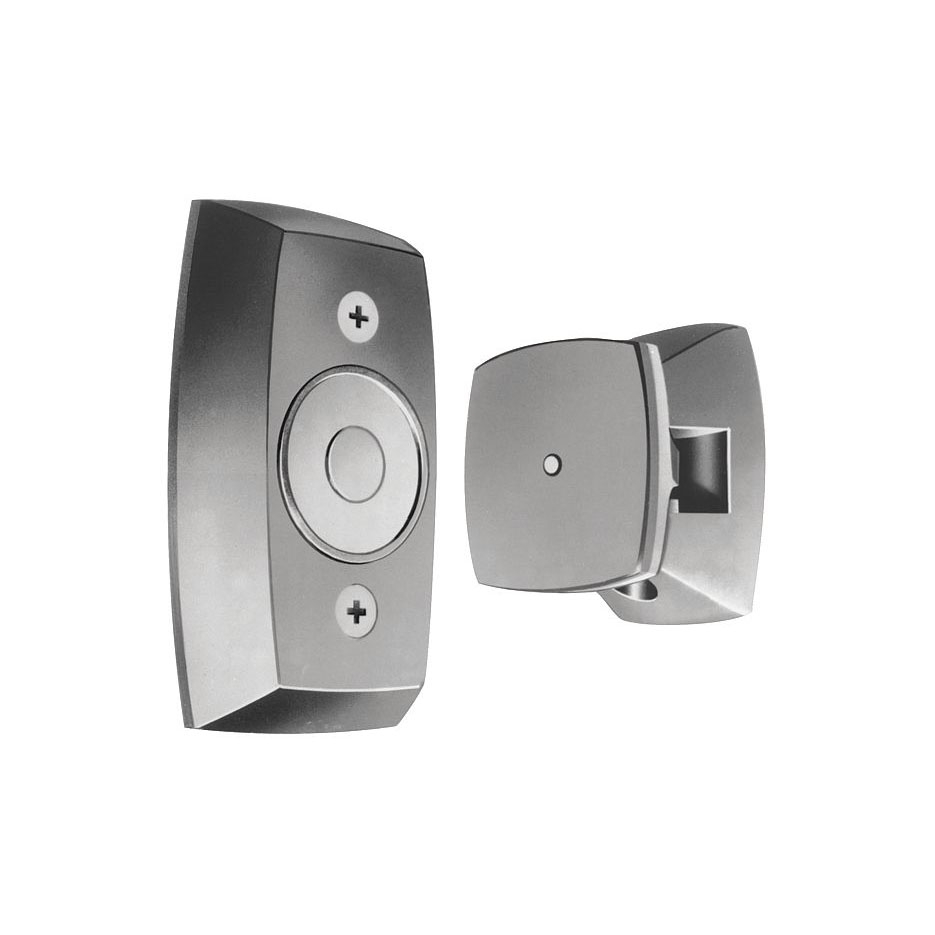

Sargent 1560-EN Magnetic Door Holder

The Sargent 1560-EN Magnetic Door Holder is a Surface Mounted Magnetic Door Holder.

Features include:

Surface Mounted Magnetic Door Holder
Designed for use with self-closing fire and smoke barrier doors
Used independently or with any fire or smoke detector system
When de-activated, helps control the spread of fire and smoke by automatically releasing doors from an open position for simultaneous closing

Fail-safe device: When electrical power fails doors will release to close automatically
Conforms to devices outlined in National Fire Protection Agency Standards No. 80 and 101
Designed to work with SARGENT door closers
Recommended vertical location is on top rail of door – within 6" of lock stile edge
Fits standard outlet box
Holding force – 35 lbs typical
Voltage and Current: 120 VAC, 60 Hz., .020 amp; 24 VAC/DC, 60 Hz., .020 amp; 12 VDC, .040 amp
Meets ANSI A156.15
UL Listed to U.S. and Canadian safety standards
1" (25mm) extension included standard to increase armature projection to 2-5/8" (67mm)
Sprayed Aluminum Enamel
