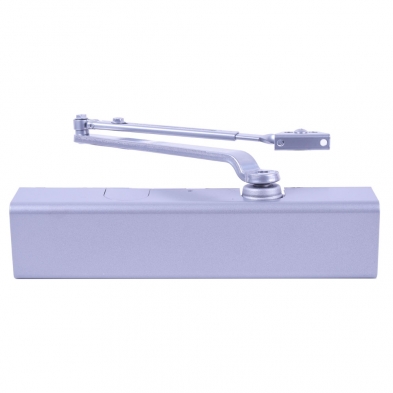

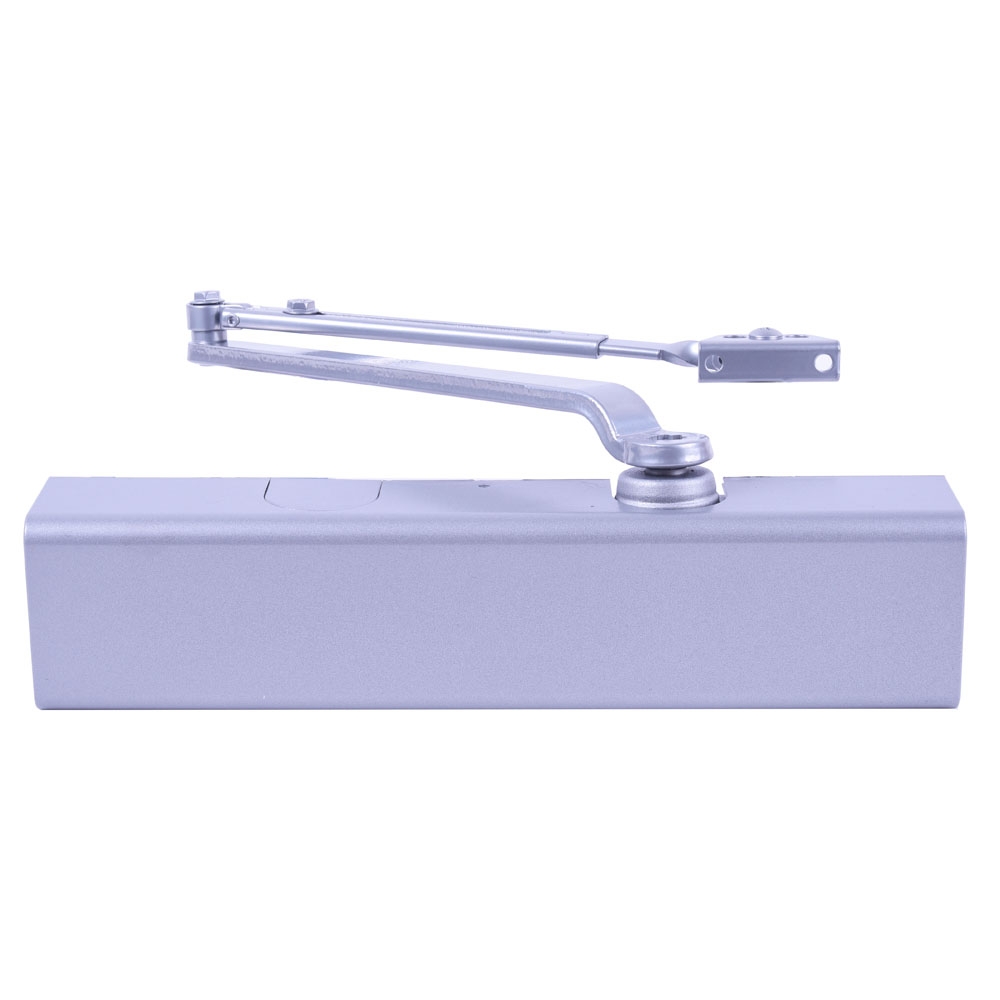

Arrow Lock 5016N-AL Door Closer

Arrow Lock 5016N-AL Door Closer

The 5016N Series surface applied door closer is ideal for use in commercial and institutional facilities where there is a demand for reliability and flexibility.

Features

• Two non-critical adjusting valves (sweep and latch) control closing speed
• Hold open arm available on adjustable closers
• Supplied with machine screws, fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors
• 10-year limited warranty

Benefits

• Available with a full plastic cover or a slim plastic cover (specify “S” suffix)
• Available with optional delayed action adjusted with separate independent valve. Delays door closing to allow unimpeded passage through the opening. Specify "D" suffix
• Non-handed for regular, top jamb and parallel arm mount applications

Specifications

• Body Material: Cast aluminum
• Door Thickness (Standard): 1 3/4"
• Handing: Non-handed
• Minimum Door Thickness: 1 3/4"
• UL Listed: Yes
• ULC Listed: Yes
• Warranty: 10-year limited warranty.
