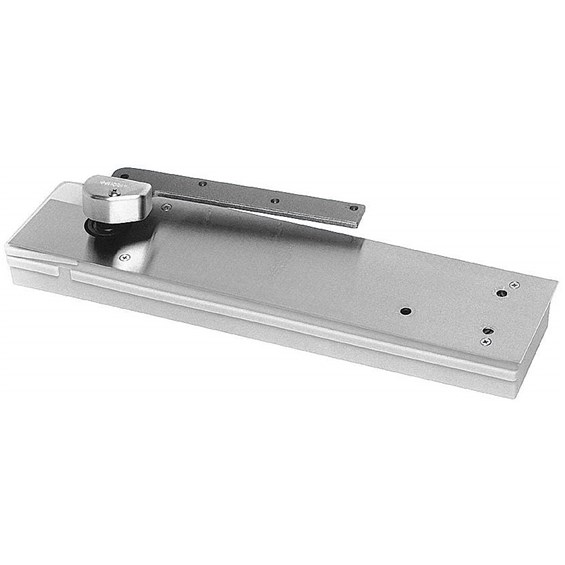

RIXSON Offset Floor closer less parts 3/4 Std duty LH 105

SKU # RX/5105NBCLAP90NLH626

Product Features:

  • Interchangeable spindle adapters.
  • Allows doors to swing 180°, trim permitting.
  • Separate and independent valves for closing speed, latch spped and backcheck.
  • Available Non-Hold Open (NBC). Specify 90° or 105°.
  • Doors will swing 5° beyond hold open point.
  • Cycolac, rustproof cement case.
  • Vertical door adjustment.
  • Standard top pivot #180 included.
  • The Rixson 51 Floor Closer is handed.
  • Furnished with wood and machine screws.
  • Applications: Single Acting. Interior Doors. Weight to 250 lbs. Door Width up to 4'0" (1219mm).
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$1,266.72

Description:

Description:

RIXSON Offset Floor closer less parts 3/4 Std duty LH 105

Rixson's Shallow Depth Floor Closers provide long-lasting performance and reliability. Ideal for low to moderate traffic, interior doors, these closers are typically used in applications where traditional floor closer depth is too great. Shallow depth closers feature interchangeable spindle adapters, fixed spring sizes and separate and independent adjustive valves.

Floor closers are ideal for supporting and controlling doors, the Rixson 51 Series Shallow Depth floor closers are recommended for low to medium traffic, interior doors. The 3/4" offset is standard.

Specifications:

Specifications:

Click Here For Rixson 51 Series Installation Instructions

  • Product Type: Floor Closer (Shallow Depth)
  • Brand: Rixson (ASSA ABLOY)
  • Series: 51 Series
  • Configuration: Less parts (floor closer body only)
  • Mounting: Floor-mounted (concealed)
  • Offset: 3/4" (19 mm)
  • Handing: Left Hand (LH)
  • Hold Open: Non-Hold Open (NBC)
  • Hold Open Angle: 105°
  • Maximum Opening: Up to 180° (trim permitting)
  • Door Type: Single-acting doors
  • Door Weight Capacity: Up to 250 lbs
  • Maximum Door Width: 4'0" (1219 mm)
  • Adjustment: Independent valves for closing speed, latch speed, and backcheck
  • Spindle Type: Interchangeable spindle adapters
  • Spring Type: Fixed spring size
  • Case Material: Cycolac (rustproof cement case)
  • Door Adjustment: Vertical door adjustment
  • Included Components: Standard top pivot #180, wood and machine screws
  • Application: Interior doors, low to moderate traffic
  • Use: Door control and closing in pivot or floor closer systems

Literature:
