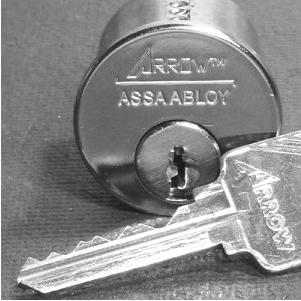

Arrow Lock MC61-AM2-3 Mortise Cylinder
Arrow MC61 Mortise Cylinder, 1-1/8", for 1-3/4" door
Cylinder Type: Mortise Cylinder
Cylinder Length: 1-1/8" (28.57mm)
Keyway: “A” keyway standard. Arrow sectional keyways available
Body: Brass, 1-5/32" (29.37mm) diameter. Six pin tumbler cylinder.
Furnished: Standard with cylinder collar
Scalp: Brass, Bronze.
Cams
- 001 - Cam for mortise lock functions 12, 17, 22, 23, 24, 27, 32 (I/S), 33, 37
- 004 - Cam for N series, panic device trims, alarms
- 006 - Cam for Schlage locks
- AM2 - Cam for mortise lock functions 11, 13, 19, 20, 21, 31, 32 (O/S), 34, 38, 40, 41, 42, 44
- AR18 - Cam for Adams Rite locks
