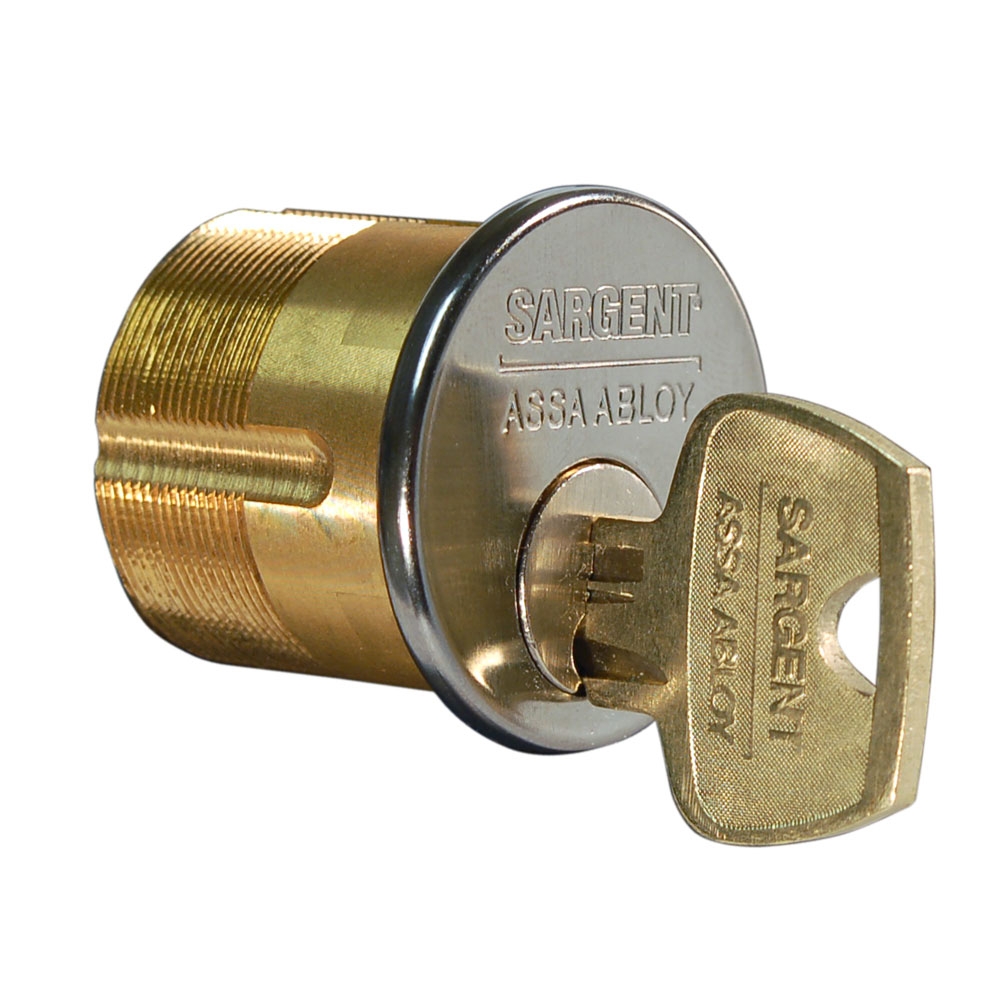

Sargent 41-LC-32D 1-1/8" Mortise Cylinder
Sargent 41 Mortise Cylinder 6-Pin - 1-1/8"
- Length Under Cylinder Head: 1-1/8" (29mm)
- Keyway Supplied KD- Keyed Different, All Other Keyways are 1 Bitted
- Cylinder: Solid brass, 1-5/32" (29mm) diameter
- Cap: Brass, bronze or stainless steel
- Furnished standard with No. 97 rosette and compression spring
- 6 pin standard
- Mortise cylinder assemblies that are ordered without hardware are supplied with standard SARGENT offset cam 13-0664
40 series mortise cylinders‚ are high quality conventional cylinders available in a number of different keyways and finishes. Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap available‚ in all architectural‚ finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8‚ through 3, minimum length for 7-pin is 1-1/4. They are provided standard with Sargent offset cam number 13-0664, other cams are available.
