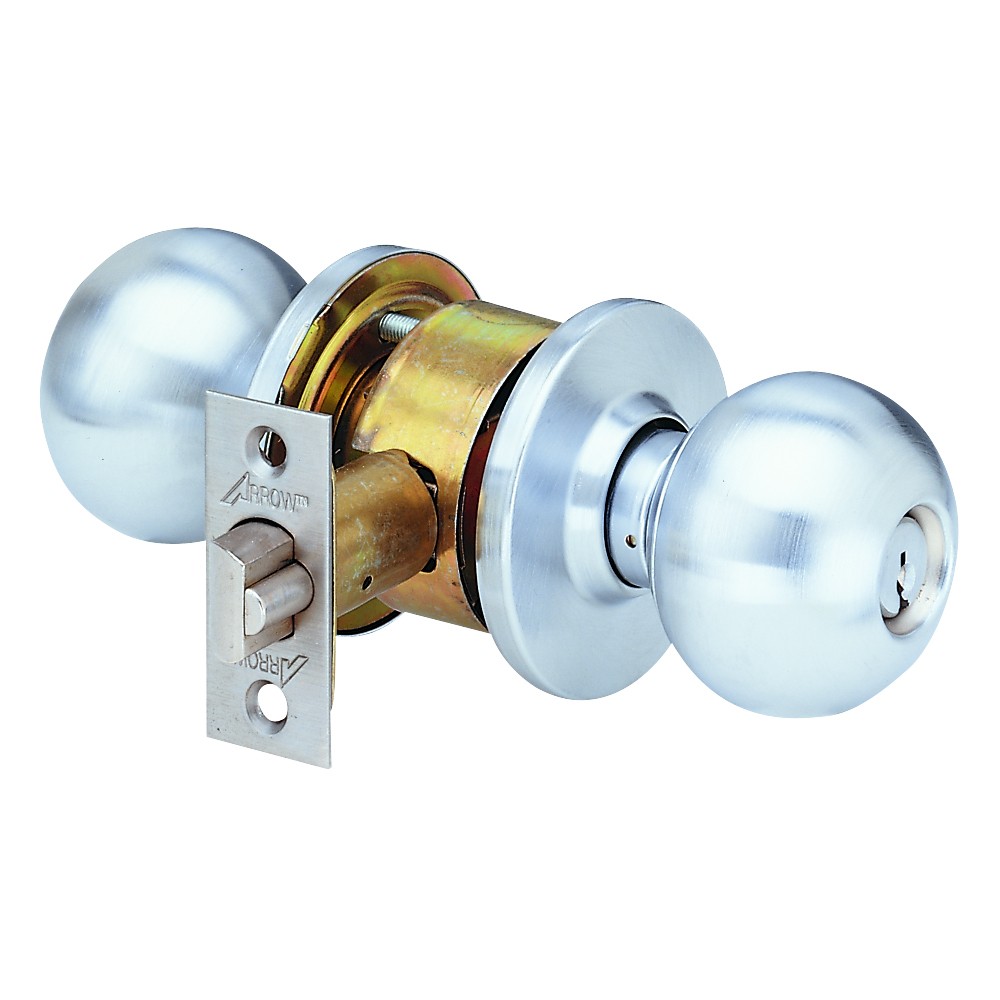

Arrow MK Series Grade 2 Locksets

Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.


G.S.A. Contract Holder
This item is available on our
GSA contract # GS-07F-5498R
Pricing varies based on options selected below.
US$43.32

Specifications:

Specifications:

  • Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.
  • Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm)
  • Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)
  • Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.
  • Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).
  • Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.
  • Handing: Reversible.
  • Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.
  • Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.
  • Finish: US3, US5A, US26D.
