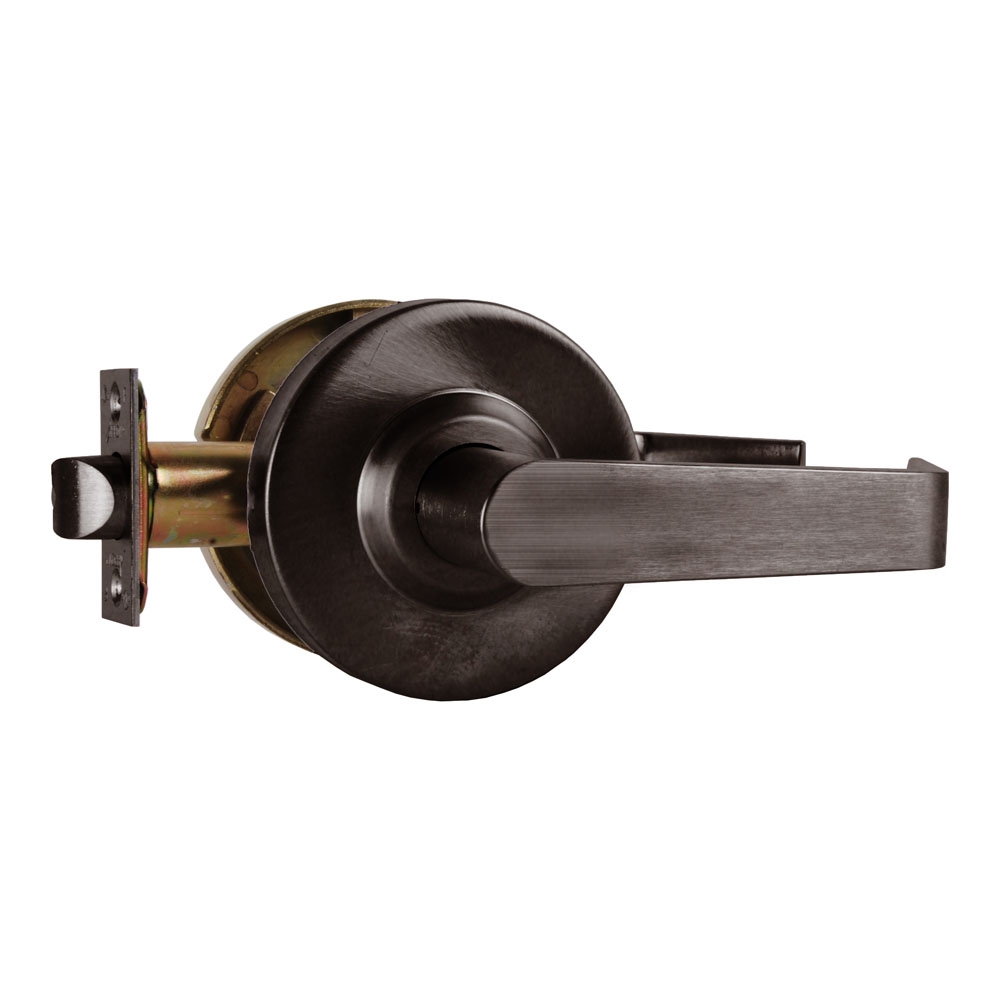

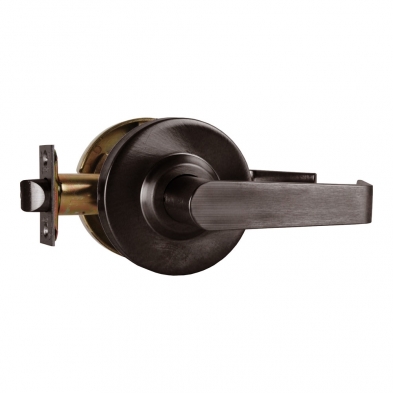

Arrow Lock MLX01SB-10BP Passage Lever Lock

SKU # AR/MLX01SB-10BP

The Arrow Lock MLX01SB-10BP Passage Lever Lock is a Grade 2 lockset with a freewheeling lever for abuse resistance, and is UL listed while complying with Americans with Disabilities Act requirements. It has a two screw lockset for easy installation, and it's a great option for replacing or upgrading commercial locksets. This lock has a latchbolt operated by a lever on both sides.

  • Dark oxide bronze, clear coated finish
  • Sierra knob design
  • Backset: 2-3/4"
  • Fits doors with 1-3/8" (34.93mm) to 1-3/4" (44.45mm) thickness
  • Stainless steel latch
  • Non-handed lever
  • Solid brass 6 pin cylinder
US$67.83
