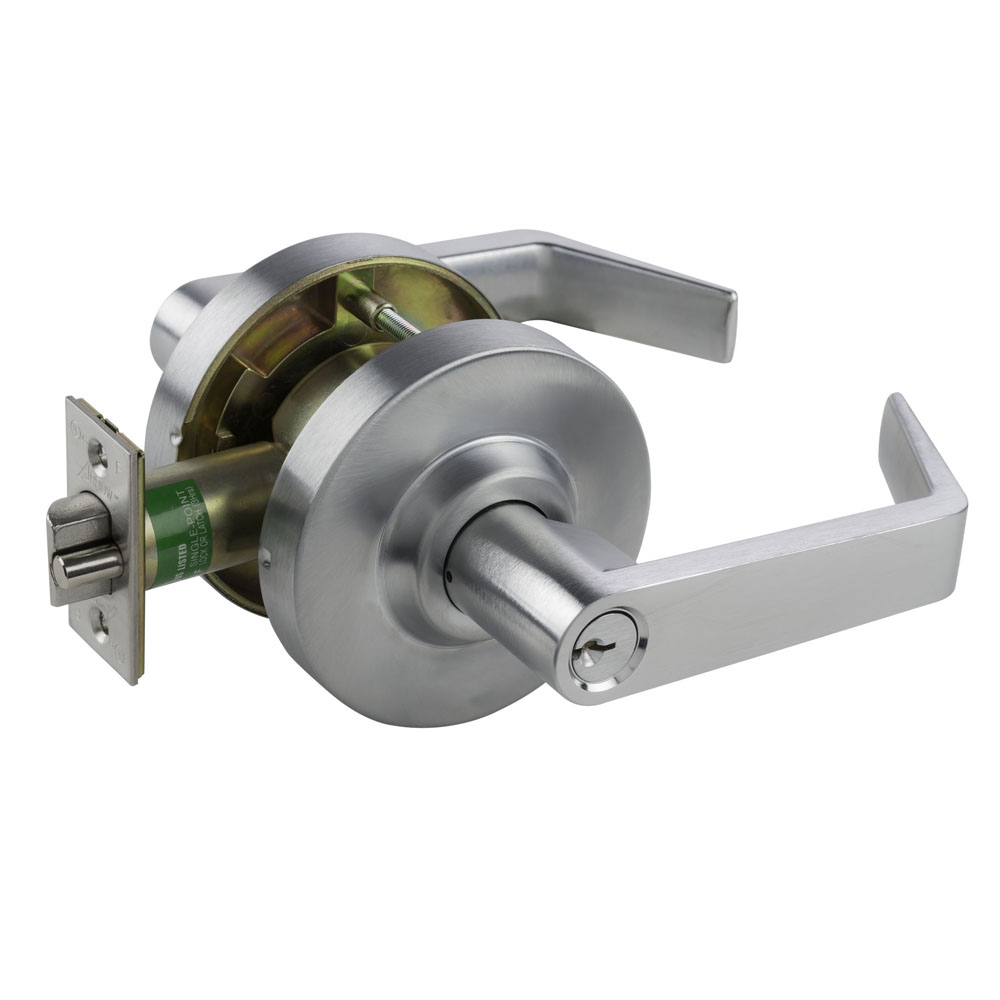

Arrow Lock MLX11SB-26D Entrance Lever Lock

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Freewheeling Lever
• Handing – Non-handed
• Strike – 4-7/8" ANSI (123.83mm)
• Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
