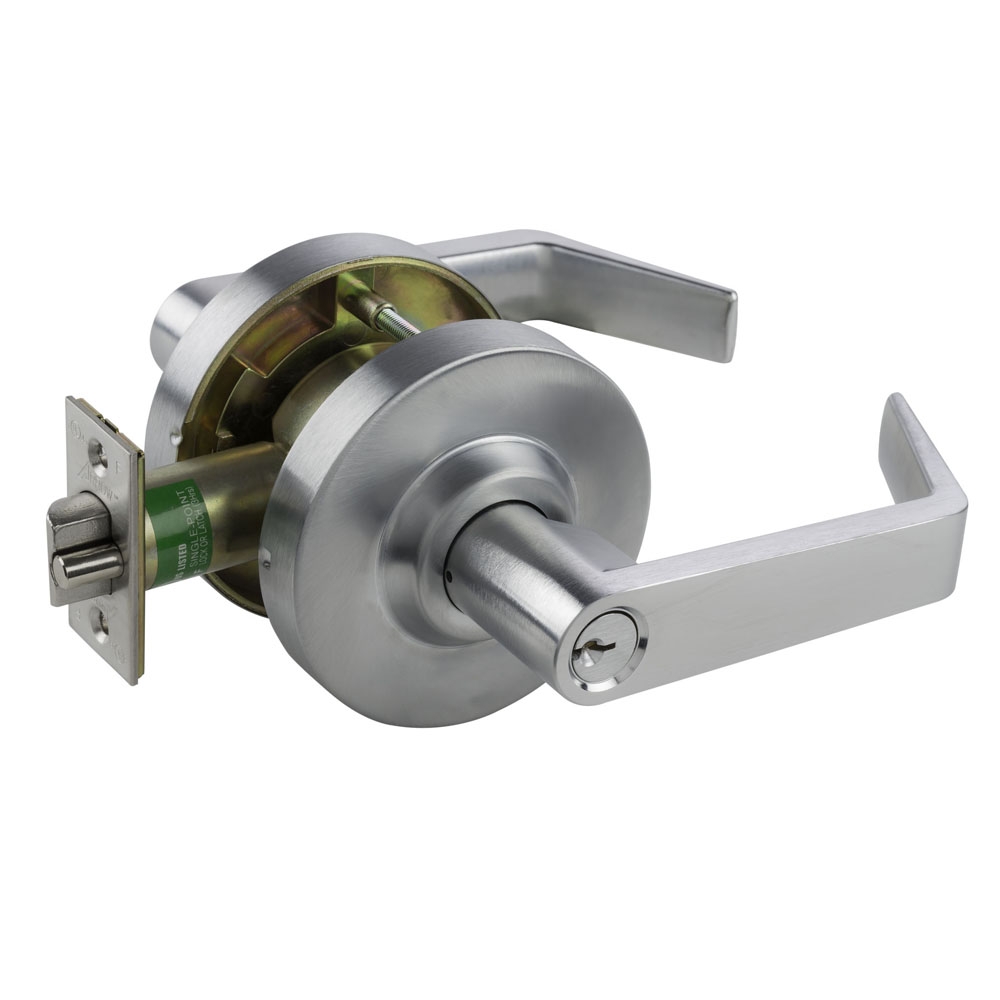

Arrow Lock MLX12SB-26D Storeroom Lever Lock

SKU # AR/MLX12SB-26D

The Arrow Lock MLX12SB-26D Storeroom Lever Lock is a Grade 2 lockset with a freewheeling lever for abuse resistance, and is UL listed while complying with Americans with Disabilities Act requirements. It has a two screw lockset for easy installation, and it's a great option for replacing or upgrading commercial locksets.

Satin chromium plated finish
Sierra knob design
Backset: 2-3/4"
Fits doors with 1-3/8" (34.93mm) to 1-3/4" (44.45mm) thickness
Stainless steel latch
Non-handed lever
Solid brass 6 pin cylinder

This item is available on our
GSA contract # 47QSWA19D001W

US$68.99

Qty:

Comments or instructions

Description:

Arrow Lock MLX12SB-26D Storeroom Lever Lock

Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
Backset – 2-3/4" (69.85mm)
Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
Freewheeling Lever
Handing – Non-handed
Strike – 4-7/8" ANSI (123.83mm)
Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
