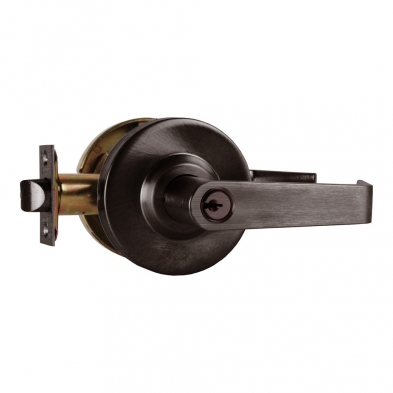

Arrow Lock MLX72SB-10BP Privacy Lever Lock

SKU # AR/MLX72SB-10BP

Read Review(s) | Log in to Review

The Arrow Lock MLX72SB-10BP Privacy Lever Lock is a Grade 2 lockset with a freewheeling lever for abuse resistance, and is UL listed while complying with Americans with Disabilities Act requirements. It has a two screw lockset for easy installation, and it's a great option for replacing or upgrading commercial locksets. It has a latch bolt that is operated by the lever on either side, except when the inside turnbutton locks the outside. It can be unlocked by rotating the button or by using a tool outside.

  • Dark oxide bronze, clear coated finish
  • Sierra knob design
  • Backset: 2-3/4"
  • Fits doors with 1-3/8" (34.93mm) to 1-3/4" (44.45mm) thickness
  • Stainless steel latch
  • Non-handed lever
  • Solid brass 6 pin cylinder
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$63.49
Comments or instructions

Description:

Description:

Arrow Lock MLX72SB-10BP Privacy Lever Lock

  • Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
  • Backset – 2-3/4" (69.85mm)
  • Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
  • Freewheeling Lever
  • Handing – Non-handed
  • Strike – 4-7/8" ANSI (123.83mm)
  • Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different

Specifications:

Specifications:

Click Here for Arrow Lock MLX Series Catalog

Literature:

Literature:

Click Here for Arrow Lock Condensed Catalog

Product Videos:

Product Videos:
