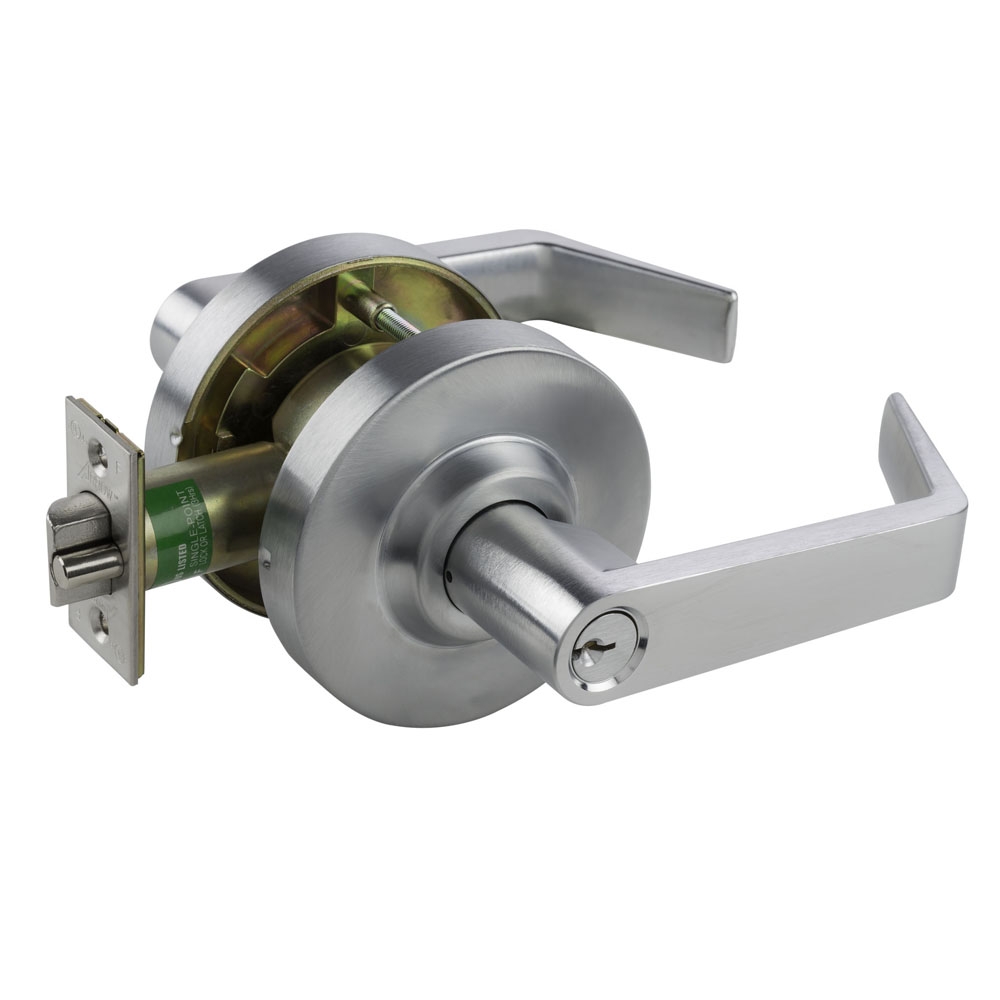

Arrow Lock MLX82SB-26D-CS Storeroom Lever Lock
The MLX Series Grade 2 Cylindrical Lever Locks series, including the Arrow Lock MLX82SB 26D CS is described as follows. The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
Arrow MLX Series is a robust BHMA Grade 2 lockset featuring a freewheeling lever for abuse resistance, four screw lock install for quick installation
Benefits
- Quick and easy installation with removable through bolts
- Abuse resistance
- Economical solution for ADA Compliance
Specifications
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Small Format, Large Format
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Hollow Metal, Wood
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type: ANSI Curved Lip
- UL Listed: Yes
