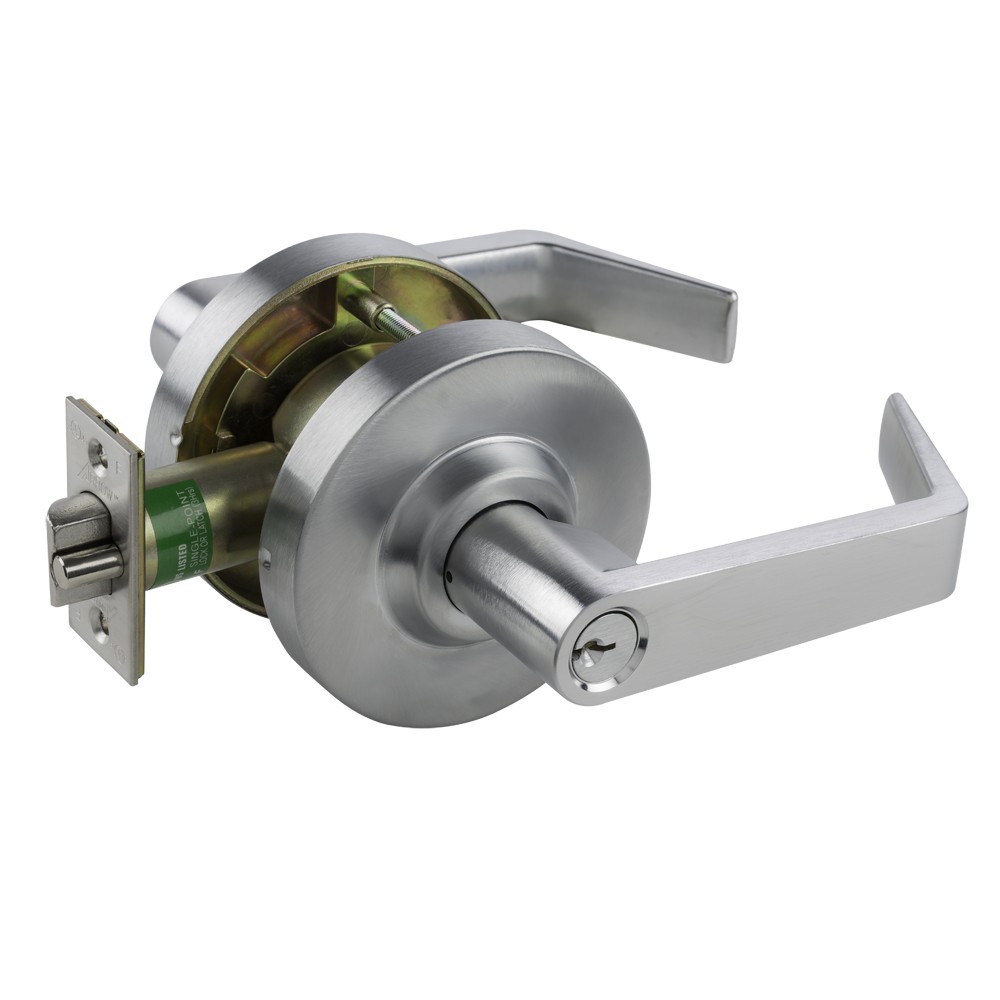

Arrow QL Series Grade 1 Lever Locksets

SKU # ARQL

Arrow’s QL Series Grade 1 cylindrical lockset featuring a freewheeling lever for abuse resistance and a 10 year warranty. The QL Lever features a two screw install for quick and easy installation.

Pricing varies based on options selected below.
US$112.29
Clear All
Arrow Lock

You may also like

Specifications:

Specifications:


  • Door Preparation: Requires standard 2-1/8" (53.97mm) bore through door.
  • Backset: 2-3/4" (69.85mm)
  • Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2 17/32" ( 4.5mm).
  • Freewheeling Lever
  • Warranty: Ten Year Warranty
  • Handing: Non-handed
  • Strike: 4-7/8" ANSI (123.83mm)
  • Cylinder: Solid brass 6 pin, Schlage CS keyway, SFIC and SIC
  • Keys: 2 brass keys
  • Finish: US3, US26D.
