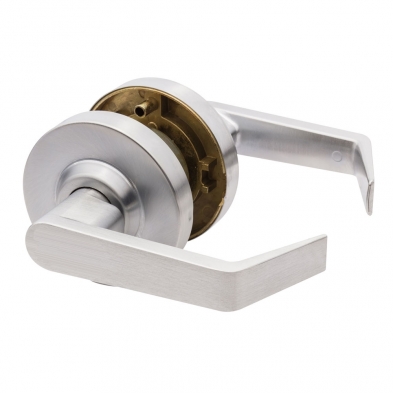

Arrow Lock QL02SB-26D Privacy Lever Lock

Arrow Lock QL02SB-26D Privacy Lever Lock

Arrow’s QL Series Grade 1 cylindrical lockset featuring a freewheeling lever for abuse resistance and a 10 year warranty. The QL Lever features a four screw install for quick and easy installation.

Benefits

• Safety & Security: ANSI/BHMA Grade 1 lock manufactured with high quality materials; specialized functions allow for quick and secure lockdowns
• Abuse resistance
• Economical solution for ADA Compliance

Specifications

• ANSI/BHMA Code: A156.2
• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Small Format, Large Format
• Cylinder Pins: 6 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Hollow Metal, Wood
• Handing: Non-handed
• Latchbolt Throw: 1/2"
• Maximum Backset: 2 3/4"
• Minimum Backset: 2 3/4"
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/8"
• Strike Type: ANSI Curved Lip
• UL Listed: Yes
