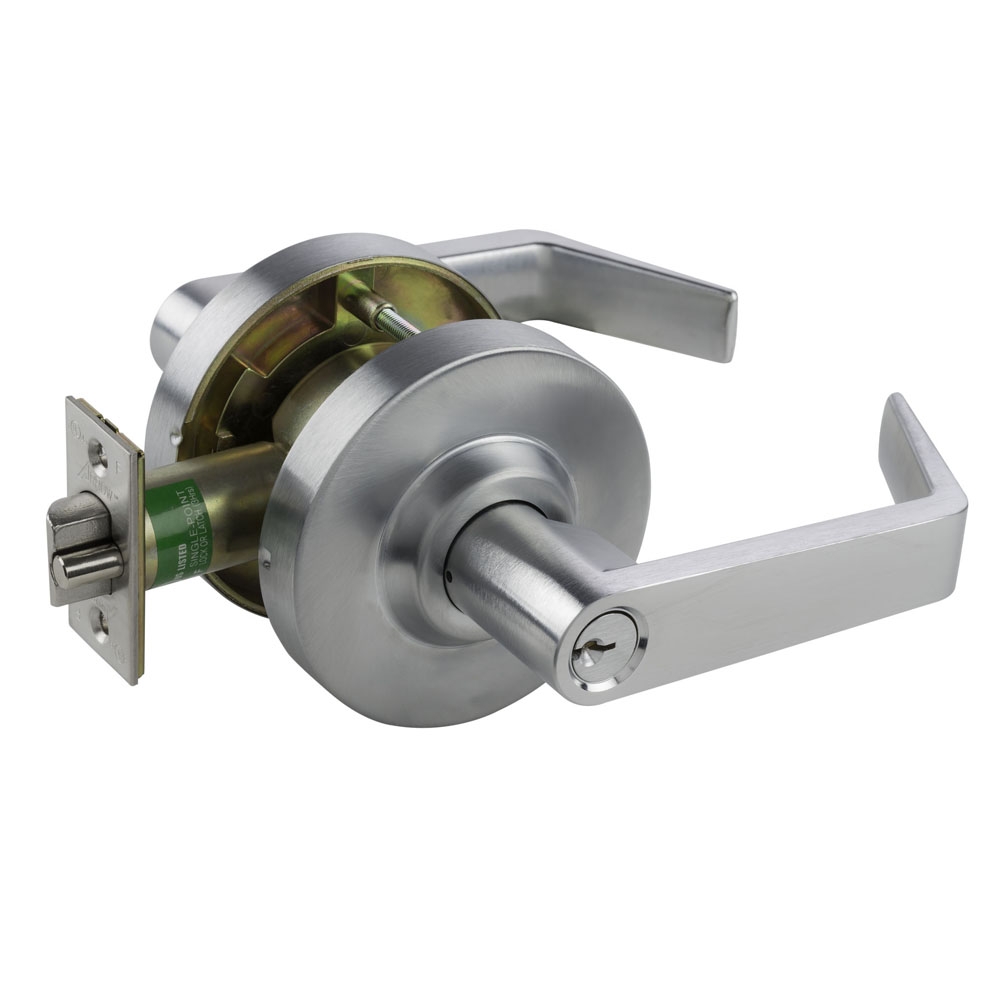

Arrow Lock QL87SB-26D-CS Classroom Lever Lock
Arrow’s QL Series Grade 1 cylindrical lockset featuring a freewheeling lever for abuse resistance and a 10 year warranty. The QL Lever features a four screw install for quick and easy installation.
Benefits
- Safety & Security: ANSI/BHMA Grade 1 lock manufactured with high quality materials; specialized functions allow for quick and secure lockdowns
- Abuse resistance
- Economical solution for ADA Compliance
Specifications
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Small Format, Large Format
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Hollow Metal, Wood
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/4"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Strike Type: ANSI Curved Lip
- UL Listed: Yes
Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
Backset – 2-3/4" (69.85mm)
Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Exposed Trim – QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
Freewheeling Lever
Handing – Non-handed
Strike – 4-7/8" ANSI (123.83mm)
Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
