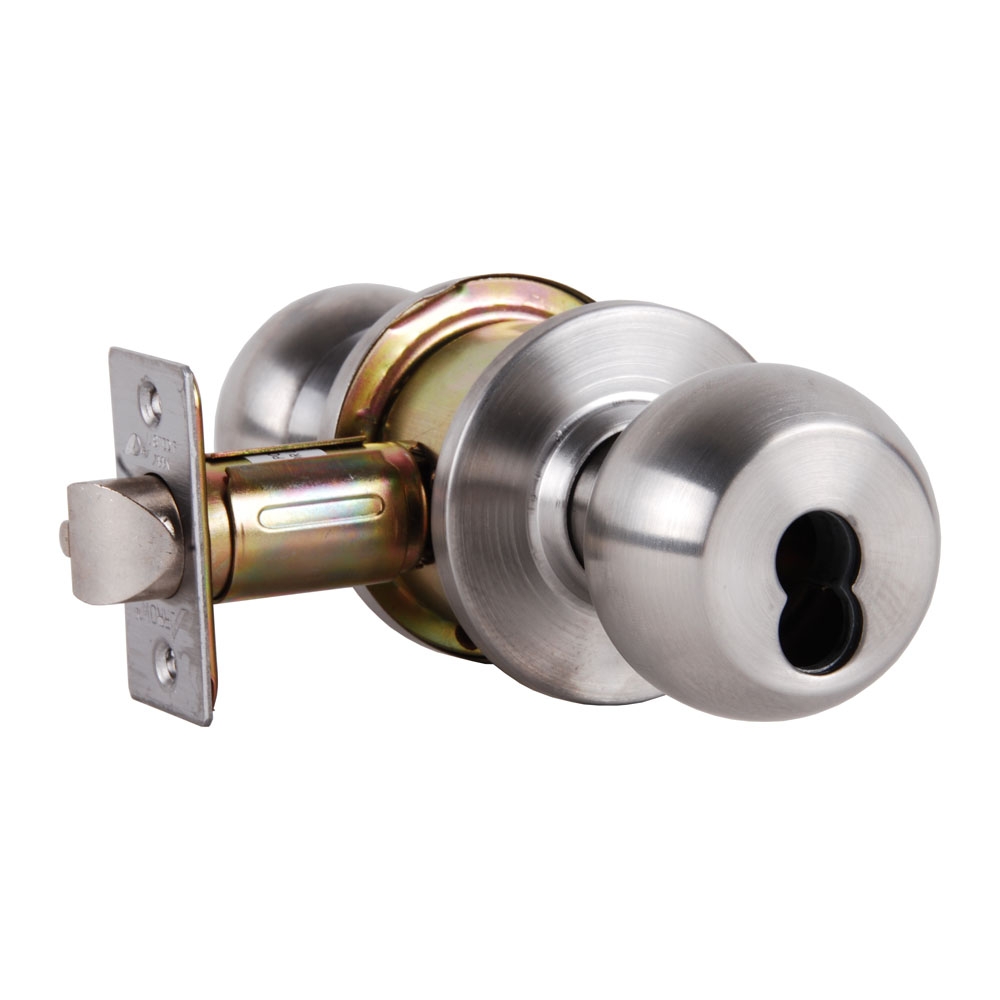

Arrow Lock RK12BD-32D-IC Storeroom Knob Lock
Arrow RK12-BD Grade 2 Storeroom Cylindrical Lock, Ball Knob
The RK Series has been enhanced to offer a wide variety of finishes and functions. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
Function: Storeroom - ANSI F86
Outside knob/lever always rigid.
Latchbolt operated by key in outside knob, or by turning inside knob.
Features
Construction: Cold rolled steel with zinc dichromate finish for corro resistance. Requires standard 2-1/8" (53.97mm) bore through door.
Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diame. Total projection from face of door is 2-3/4" (69.85mm).
Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
Cylinder: Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
Key: 2 brass keys.
Handing: Non-handed.
Thru-bolts: Removable thru-bolts standard on RL Series.
