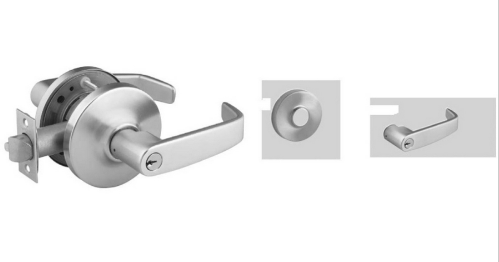

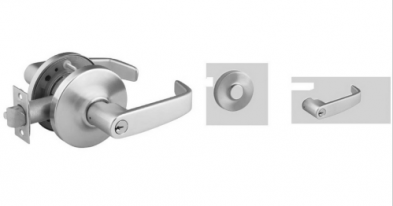

Sargent 28-10G70-24V-LL-26D Electrified Cylindrical Lock

SKU # SA/28-10G70-24V-LL-26D

The Sargent 28-10G70-24V-LL-26D Electrified Cylindrical Lever Lock is an Electrified Cylindrical Lever Lock. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by nine times the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Features include:
  • Cylindrical Lever Lock for the 10 Line
  • 28 - Curved Lip Strike (#808)
  • 70 Electromechanical (Fail Safe) Function
  • 10G70: Power off, unlocks outside lever
  • Deadlocking latch
  • Key retracts latch
  • Inside lever always allows egress
  • Voltage requirements: 12VDC or 24VDC Regulated; always specify voltage
  • 250mA at 24VDC or 500mA at 12VDC
  • Provided with ElectroLynx 8-Pin Connector
  • Rose Design L
  • Lever Design L
  • All levers conform to ADA requirement for barrier-free accessibility
  • Satin Chrome
