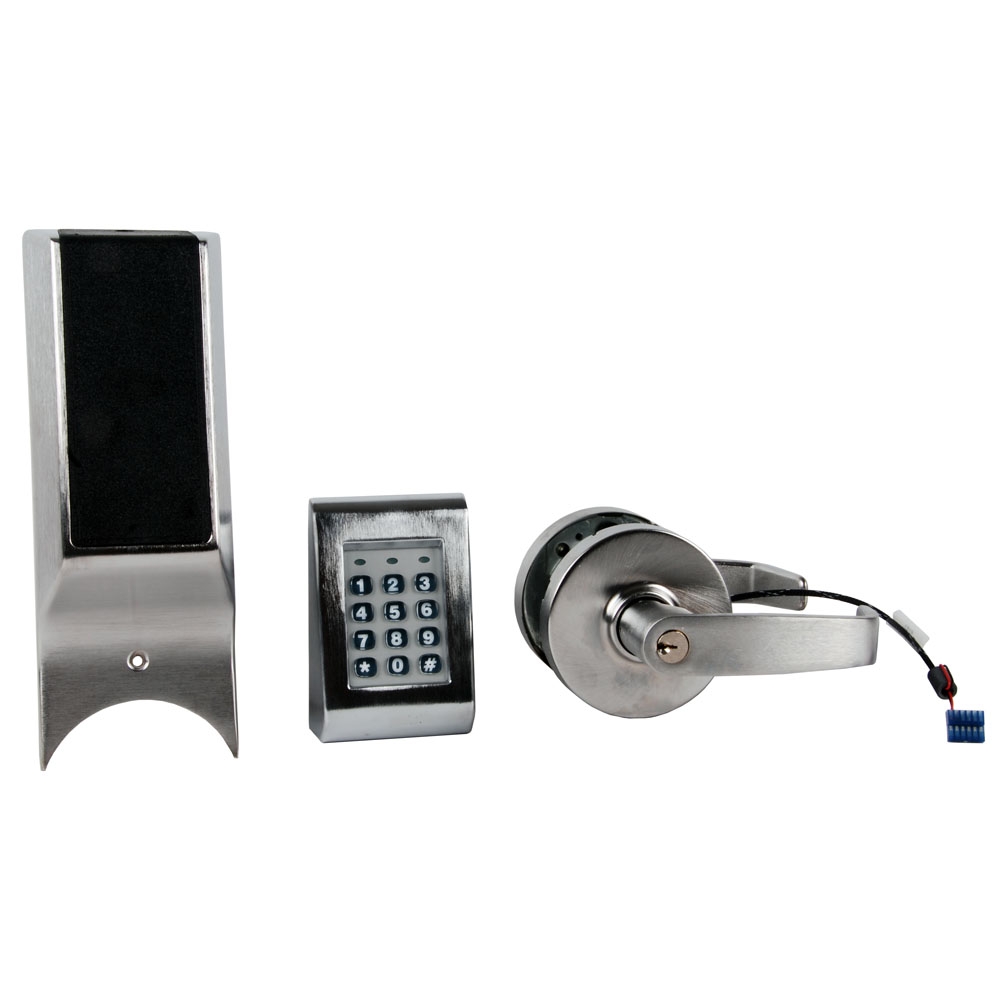

Sargent 28-KP10G77-LL-26D 10-Line Cylindrical Keypad Lock

SKU # SA/28-KP10G77-LL-26D

The Sargent 28-KP10G77-LL-26D 10-Line Cylindrical Keypad Lock is a Cylindrical Keypad Lever Lock. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by nine times the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Features include:

  • Cylindrical Lever Lock with a Keypad for the 10 Line
  • 28 - Curved Lip Strike (#808)
  • Cylinder override standard feature
  • Lever inside always retracts latchbolt
  • Key outside retracts latchbolt
  • Outside lever rigid except when in passage mode or valid user code entered
  • Certified ANSI A156.2 Series 4000 - Grade 1
  • UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors
  • Motor driven 10 Line cylindrical lock
  • Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm)
  • 2-3/4" (70mm) backset standard.
  • Non handed
  • Heavy duty lever spring return rose assembly
  • Steel spacer bushing and extended one-piece bearing sleeves
  • Steel mounting studs
  • 3 through-bolt position combinations
  • Key override standard
  • For 1-3/4" (44mm) thick doors standard
  • Rose Design L
  • Lever Design L
  • Satin Chrome

This item has been discontinued by the manufacturer, please contact our Security Hardware Experts to learn about alternative brands and products we can offer you.
