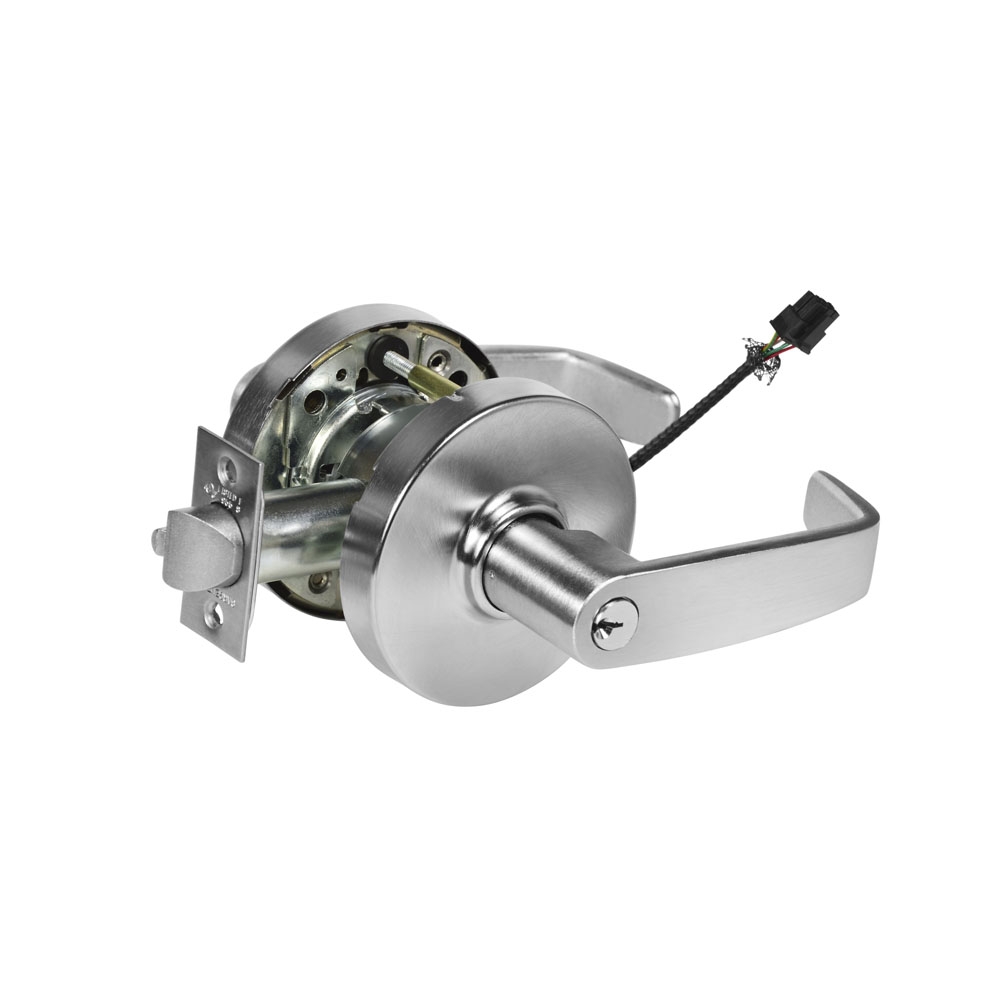

Sargent RX28-10G71-24V-LL-26D Electrified Cylindrical Lock

SKU # SA/RX28-10G71-24V-LL-26D

The Sargent RX28-10G71-24V-LL-26D Electrified Cylindrical Lock is an Electrified Cylindrical Lock.  The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by nine times the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Features include:
  • Cylindrical Lever Lock for the 10 Line
  • 28 - Curved Lip Strike (#808)
  • RX- Monitoring of Inside Lever
    • Patent Pending design
    • Non-Contact Switch
    • Bidirectional lever rotation
    • Non-handed design
    • Internal switch offers N/O & N/C
    • Modular wire harness with ElectroLynx® 8-pin connector
  • 71 Electromechanical (Fail Secure) Function
  • 10G71: Power off, locks outside lever
  • Deadlocking latch
  • Key retracts latch
  • Inside lever always allows egress
  • Voltage requirements: 12VDC or 24VDC Regulated; always specify voltage
  • 250mA at 24VDC or 500mA at 12VDC
  • Provided with ElectroLynx 8-Pin Connector
  • Rose Design L
  • Lever Design L
  • All levers conform to ADA requirement for barrier-free accessibility
  • Satin Chrome 26D
